Description
The TMS6SG is a full range coaxial speaker designed to fit the fairing speaker locations of select model Harley-Davison® Electra Glide® and Street Glide® Motorcycles. It features a Neodymium motor structure driving a co-molded, reinforced polypropylene cone with Santoprene surround. It also features an ultra-efficient 25mm dome tweeter with integrated phase plug and is made water/weather resistant with the addition of a Santoprene front isolation spider connecting between the tweeter housing and cone assembly. The speaker mounts using the factory hardware and comes with new grille assemblies. See compatibility chart for fitment.

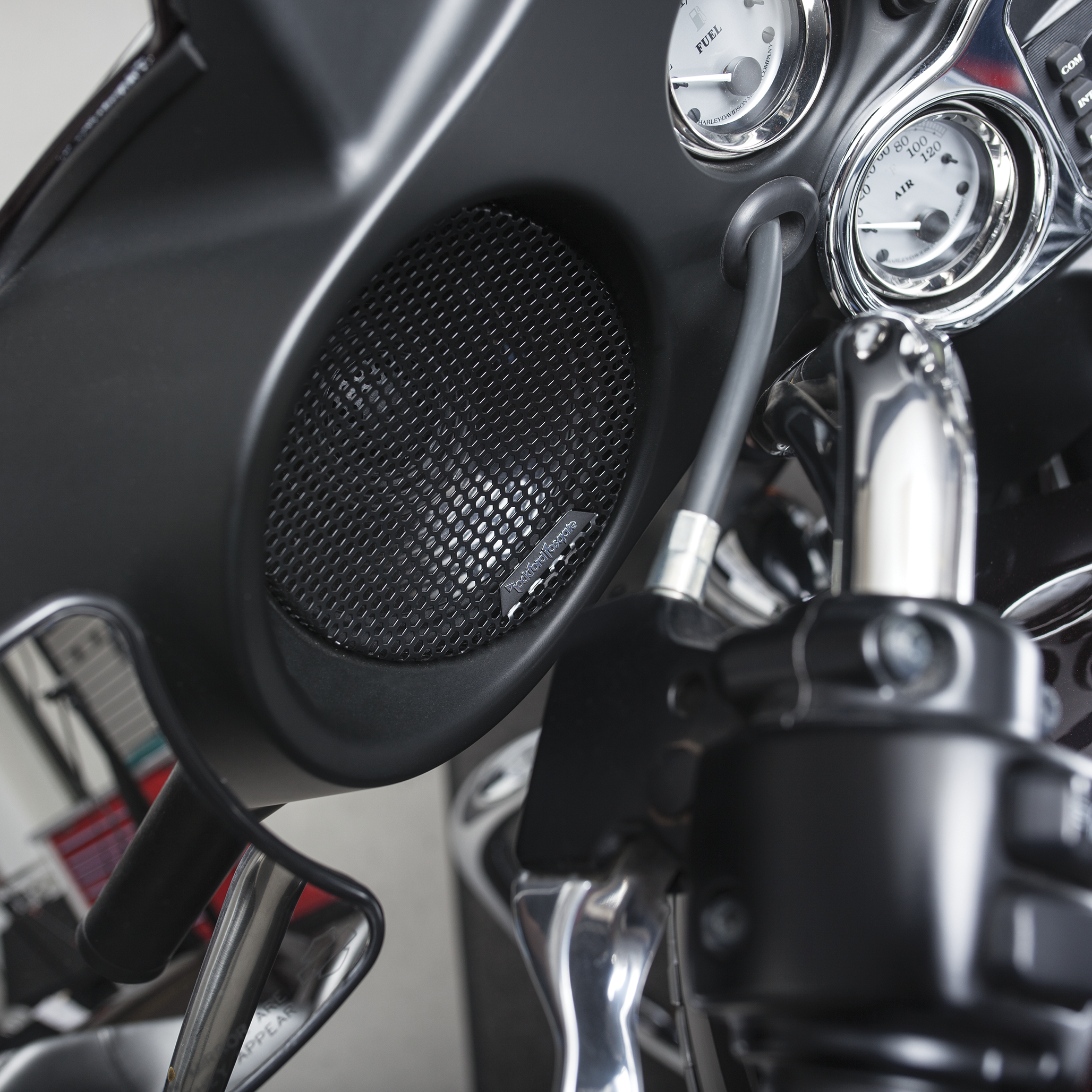

The TMS6SG full range coaxial speaker is designed for direct fitment applications on select model (see compatibility chart) Harley-Davidson® Electra Glide® and Street Glide® motorcycles in the upper fairing locations. This speaker directly replaces the existing factory speakers using the factory mounting hardware and speaker connectors.
It features a compact Neodymium motor structure driving a co-molded, reinforced polypropylene cone with Santoprene surround This ensures that you get maximum frequency response and output in both the mid and low frequency range. It also features an ultra-efficient 25mm dome tweeter with integrated phase plug for crisp clear highs even at highway cruising speeds.
It is made water/weather resistant with the addition of a Santoprene front isolation spider connecting between the tweeter housing and cone assembly. The speaker requires no modification of the factory location and comes with new grille assemblies.
Harley-Davidson® and Street Glide® are registered trademarks of Harley-Davidson Motor Company
FEATURES AT A GLANCE
- Element Ready design that is weather and water resistant
- Ultra-Efficient 25mm Proprietary Film Dome Tweeter
- Carbon Fiber Reinforced Polypropylene Cone
- Neodymium Tweeter with Integrated Phase Plug and ASA Grill
- High Power 35mm Voice Coil
- Ultra-Efficient Neodymium Ring Magnet Motor
- Ultra-High Temperature Glass Reinforced Polymer Frame
- Integrated Spade Terminals
- Integrated 6dB Crossover with High Power Polyester Capacitor
- Santoprene Front Isolation Spider
- Poly-Cotton Spider
- Co-Molded Cone and Surround
- Santoprene VAST Surround
- Designed for 1998-2013 Harley-Davidson® Electra Glide® / Street Glide® Fairing Locations
- NOTE: Installation on CVO™ and Screaming Eagle™ models are not plug-n-play and will require modification
- Low Profile Coaxial Tweeter Design
- Discreet (Hidden) Tweeter Wire
- 2-Year Warranty
Rockford Fosgate subwoofers use anodized aluminum voice coil formers that provide superior heat dissipation (up to …
The Vertical Attach Surround Technique significantly increases a subwoofer’s effective radiating cone area up to 25%.
Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.
Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.
(dB @ 1W/1M)
(dB @ 1W/1M)

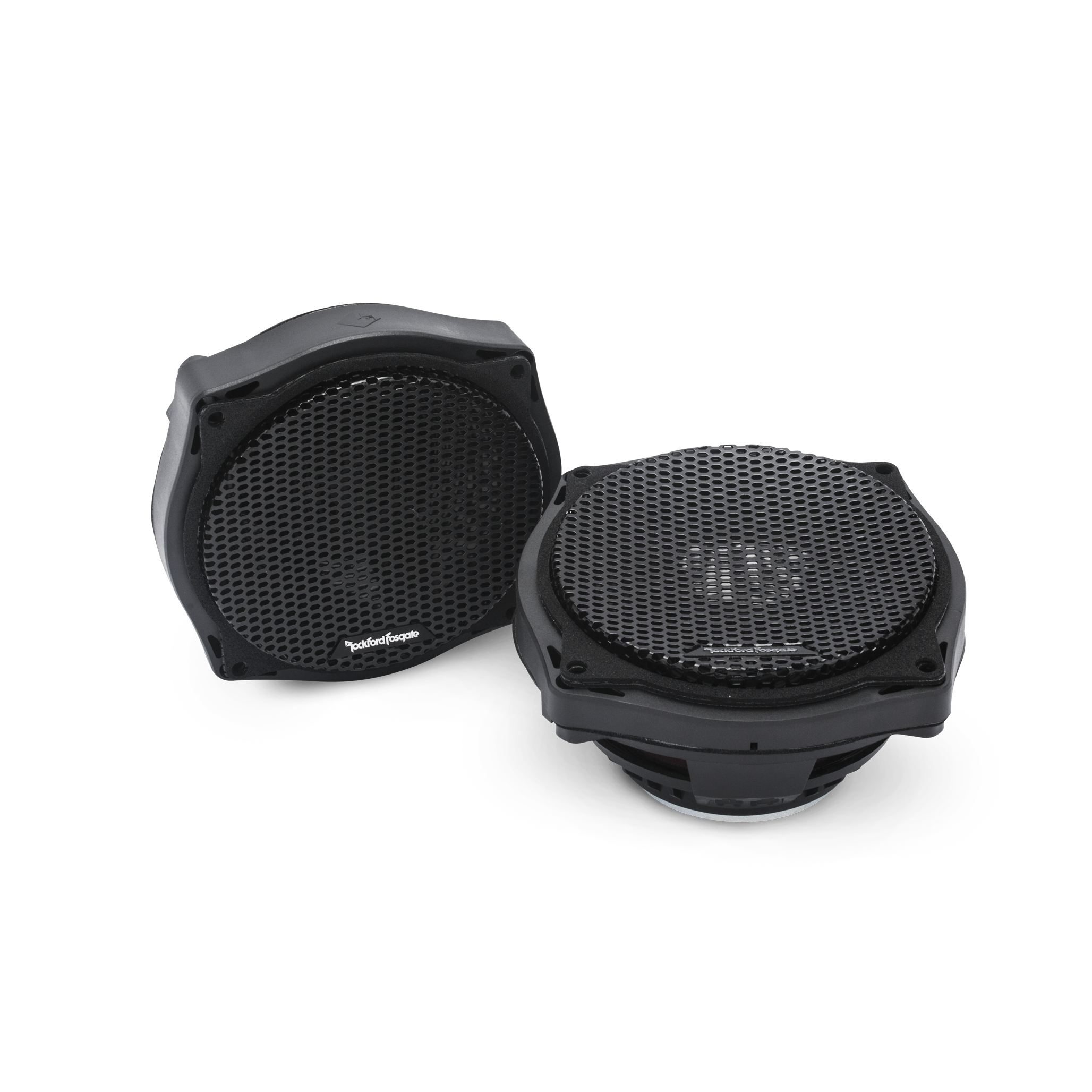

(2) Speaker Grilles
(1) Hardware Pack
| YEAR | MAKE | CHASSIS | MODEL | FAIRING |
|---|---|---|---|---|
| 2006–2013 | Harley-Davidson® | FLHX | Street Glide® | Bat Wing |
| 1998–2013 | Harley-Davidson® | FLHTI | Electra Glide® Standard | Bat Wing |
