Description

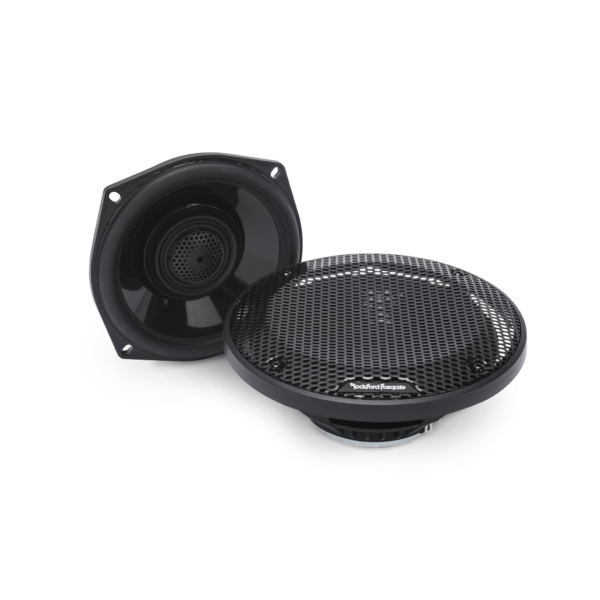

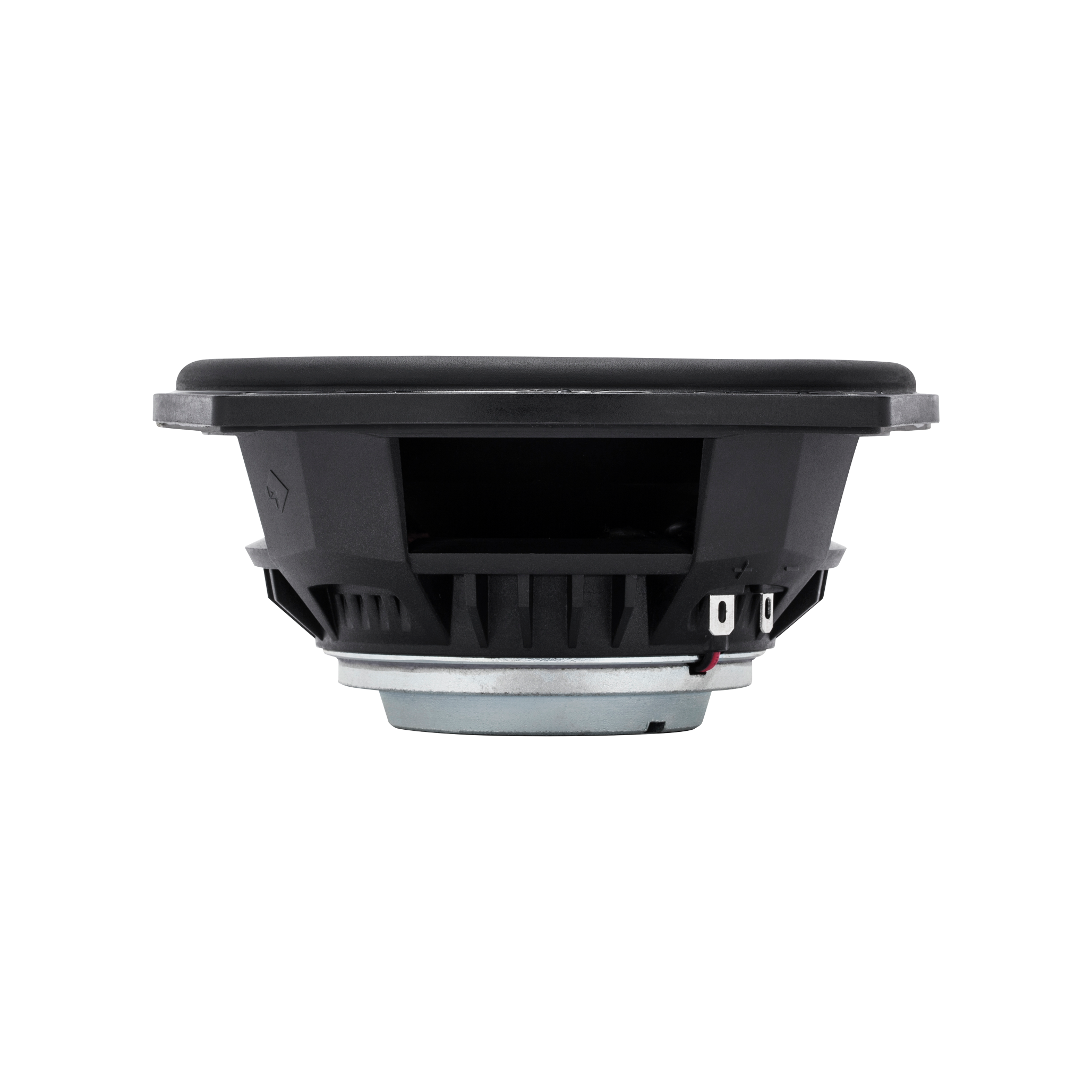

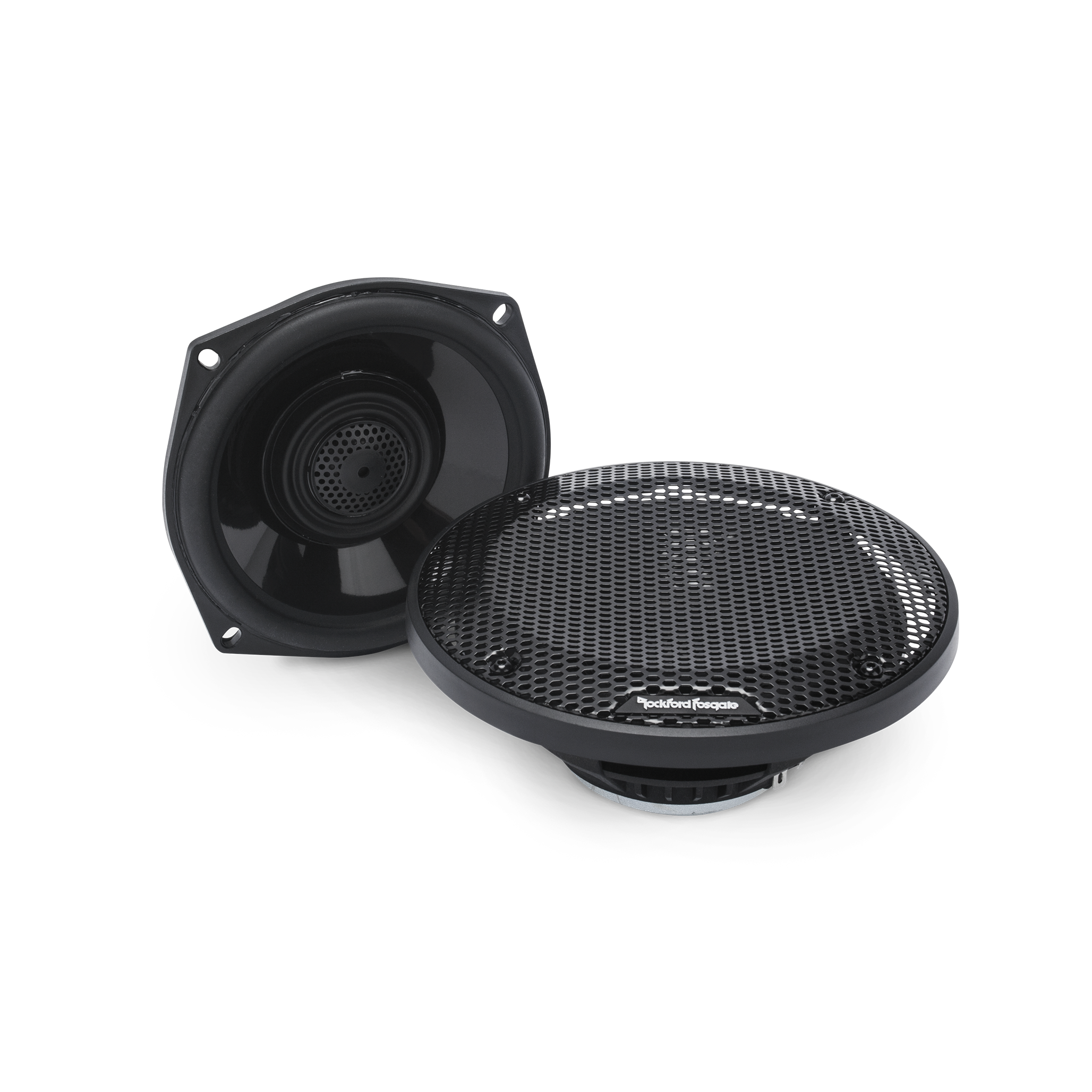

The TMS5 is a full range coaxial speaker designed to fit the Tour-Pak speaker locations of the 1998 – 2013 model year Harley-Davison® Motorcycles. It features a Neodymium motor structure driving a co-molded, reinforced polypropylene cone with Santoprene surround. It also features an ultra-efficient 25mm dome tweeter with integrated phase plug and is made water/weather resistant with the addition of a Santoprene front isolation spider connecting between the tweeter housing and cone assembly. The speaker mounts using the factory hardware and comes with new grille assemblies.
The TMS5 full range coaxial speaker is designed for direct fitment applications in 1998-2013 Harley-Davidson® motorcycles in the Tour-Pak locations. This speaker directly replaces the existing factory speakers using the factory mounting hardware and speaker connectors.
It features a compact Neodymium motor structure driving a co-molded, reinforced polypropylene cone with Santoprene surround This ensures that you get maximum frequency response and output in both the mid and low frequency range. It also features an ultra-efficient 25mm dome tweeter with integrated phase plug for crisp clear highs even at highway cruising speeds.
It is made water/weather resistant with the addition of a Santoprene front isolation spider connecting between the tweeter housing and cone assembly. The speaker requires no modification of the factory location and comes with new grille assemblies.
Harley-Davidson® is a registered trademark of Harley-Davidson Motor Company
FEATURES AT A GLANCE
- Element Ready design that is weather and water resistant
- Carbon Fiber Reinforced Polypropylene Cone
- Neodymium Tweeter with Integrated Phase Plug and ASA Grill
- Ultra-Efficient 25mm Proprietary Film Dome Tweeter
- Santoprene Front Isolation Spider
- Poly-Cotton Spider
- Co-Molded Cone and Surround
- Santoprene VAST Surround
- High Power 35mm Voice Coil
- Discreet (Hidden) Tweeter Wire
- Low Profile Coaxial Tweeter Design
- Ultra-Efficient Neodymium Ring Magnet Motor
- Ultra-High Temperature Glass Reinforced Polymer Frame
- Integrated Spade Terminals
- Integrated 6dB Crossover with High Power Polyester Capacitor
- 2-Year Warranty

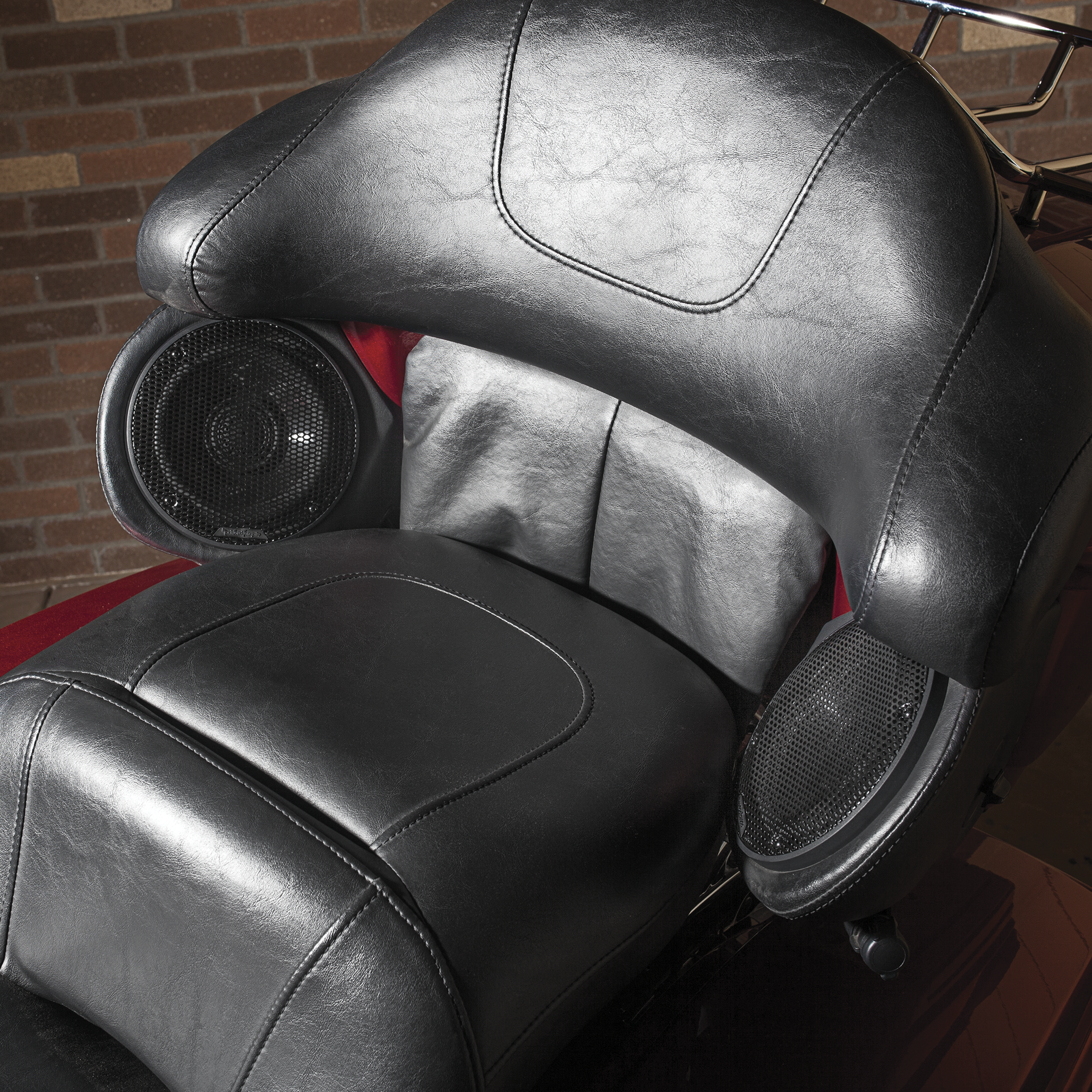

- Designed for 1998-2013 Harley-Davidson® Rear Tour-Pak® Locations
- NOTE: Installation on CVO™ and Screaming Eagle™ models are not plug-n-play and will require modification
All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration.
Rockford Fosgate subwoofers use anodized aluminum voice coil formers that provide superior heat dissipation (up to …
Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.
Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.
The Vertical Attach Surround Technique significantly increases a subwoofer’s effective radiating cone area up to 25%.
(Nominal Diameter)
(35.6 mm)
(dB @ 2.83V/1M)
(dB @ 1W/1M)
(52.0mm)
(2) Speaker Grilles
(1) Hardware Pack
| YEAR | MAKE | CHASSIS | MODEL | FAIRING |
|---|---|---|---|---|
| 2006–2013 | Harley-Davidson® | FLHX | Street Glide® | Bat Wing |
| 1998–2013 | Harley-Davidson® | FLHTI | Electra Glide® Standard | Bat Wing |
