Description
250 (10) mm (in.) | Spl Midrange | 500 W | 4 Ohm

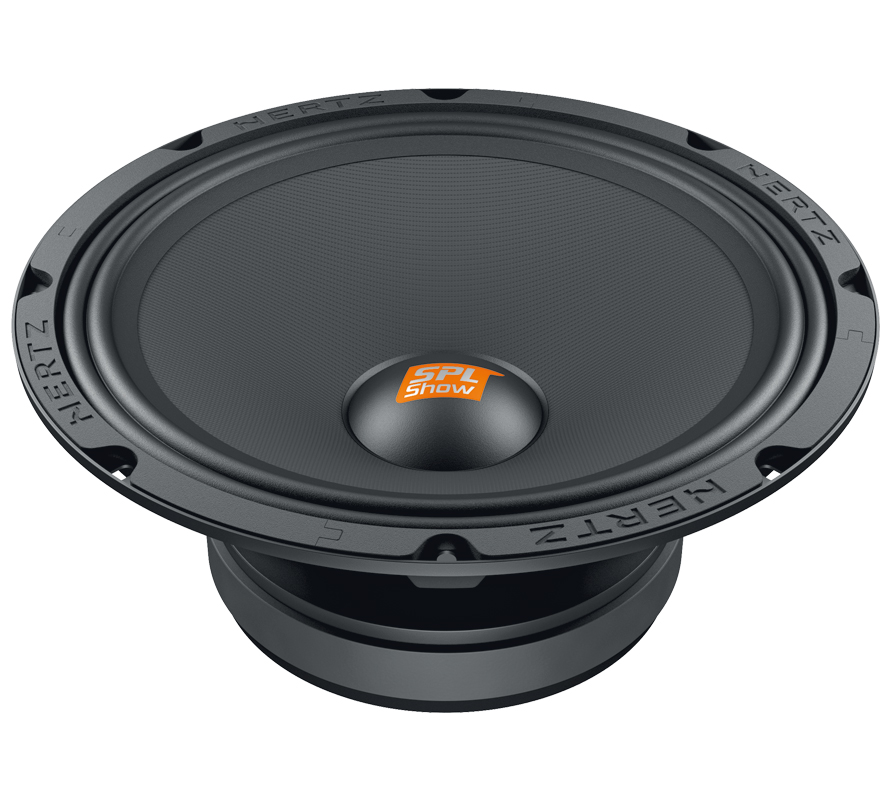

The SV 250.1 car audio midrange is the most versatile solution for SPL dedicated installations. Like the SX subwoofers, the SV 250.1 features a solid, robust structure and, like all the other SPL Show components, it employs a copper voice coil wound on a two-layer KSV former, for unheard-of thermal and mechanical capability also in extreme circumstances. The cone features a water repellent pressed paper membrane and paper dust caps, both robust and light weight, as well as double-wave damped fabric surrounds to ensure linearity even under extreme conditions, contributing to high SPL scores.
| Component | SPL Midrange |
| Size mm (in.) | 250 (10) |
| Power Handling – Continuous W | Hi-pass filtered @ 150 Hz – 12 dB Oct. |
| Power Handling – Peak W | 500 |
| Impedance Ohm | 4 |
| Voice Coil Ø | 50 (2) |
| Frequency Response Hz | 90 ÷ 7k |
| Magnet size D x d x h mm (in.) | 155 x 70 x 20 (6.1 x 2.8 x 0.8) |
| Weight of one speaker kg (lb.) | 4 (8.8) |
| Magnet | High density flux ferrite |
| Cone | Ultra light pressed paper |
| D mm | 209 |
| Re Ohm | 3,3 |
| Fs Hz | 90 |
| Le mH | 0,23 |
| Vas I | 20 |
| Mms g | 26,5 |
| Cms mm/N | 0,12 |
| BL T*m | 10,7 |
| Qts | 0,4 |
| Qes | 0,42 |
| Qms | 12,1 |
| Spl dB | 101 |

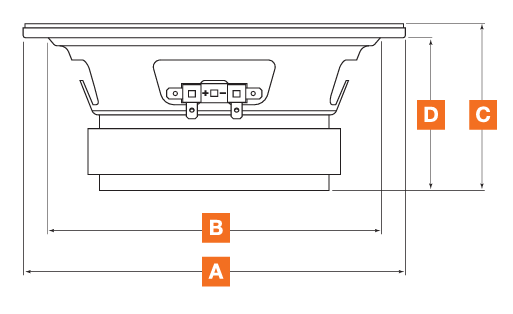

Physical Specs
| A | 257 mm | 10.1 in. |
| B | 232 mm | 9.1 in. |
| C | 108 mm | 4.3 in. |
| D | 101 mm | 4 in. |

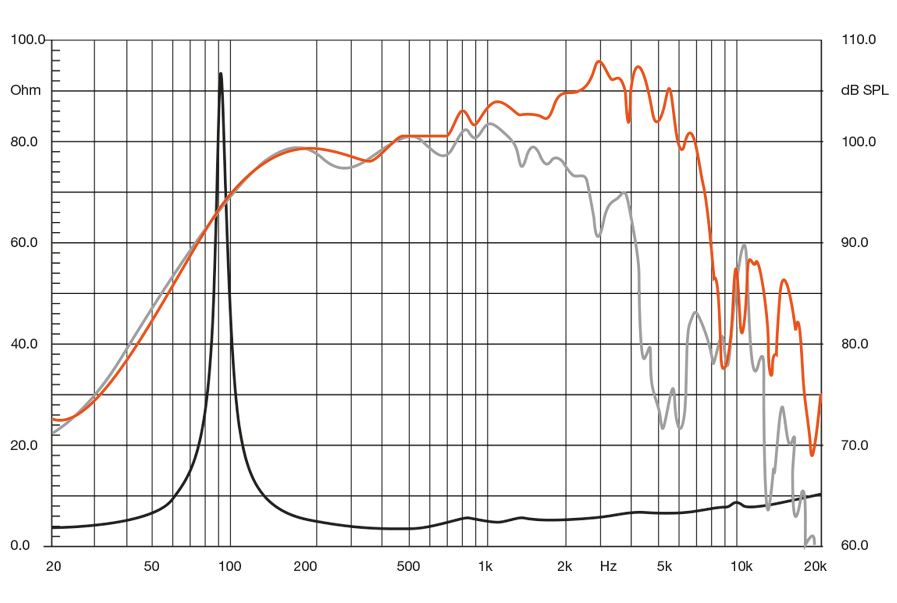

Frequency response
