Description

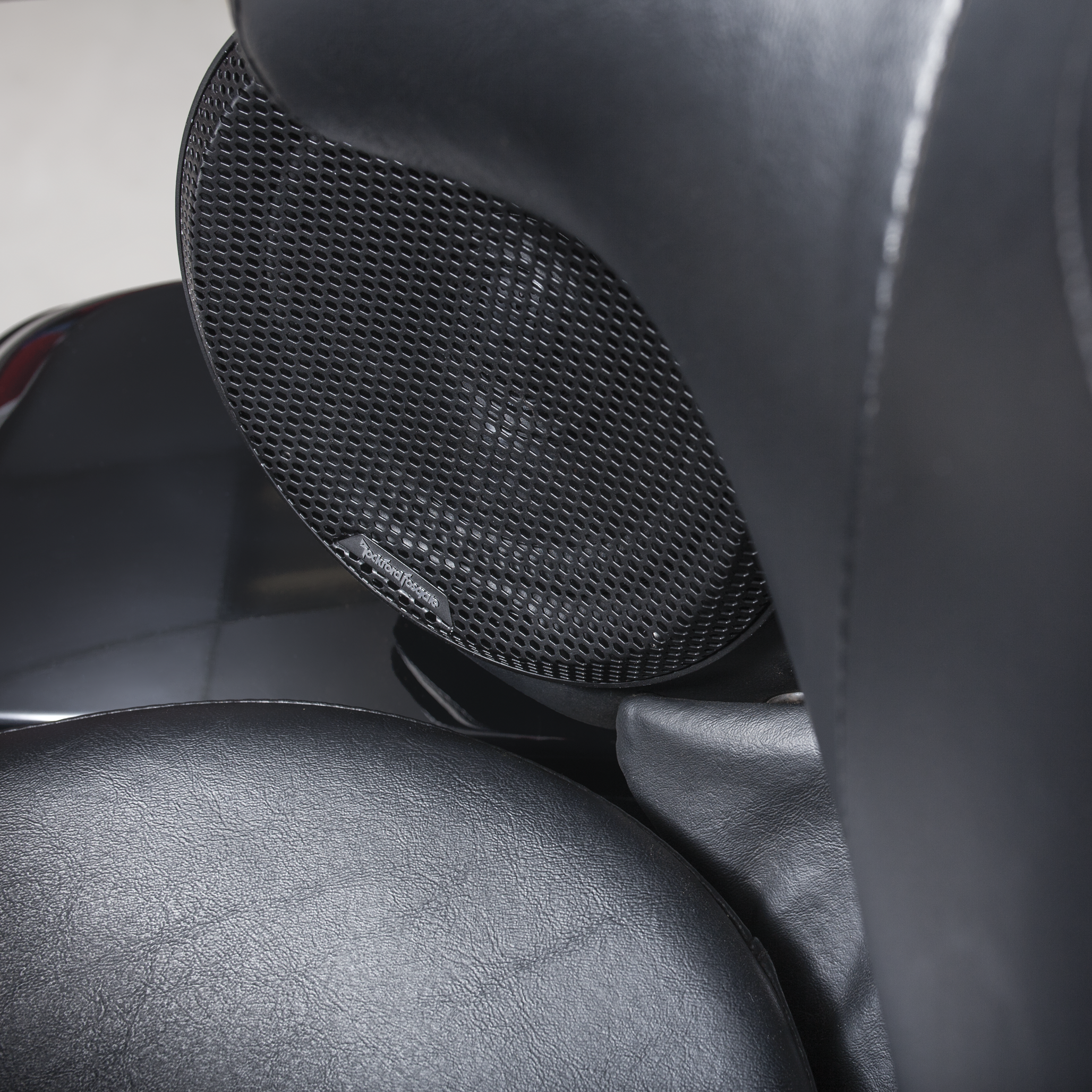

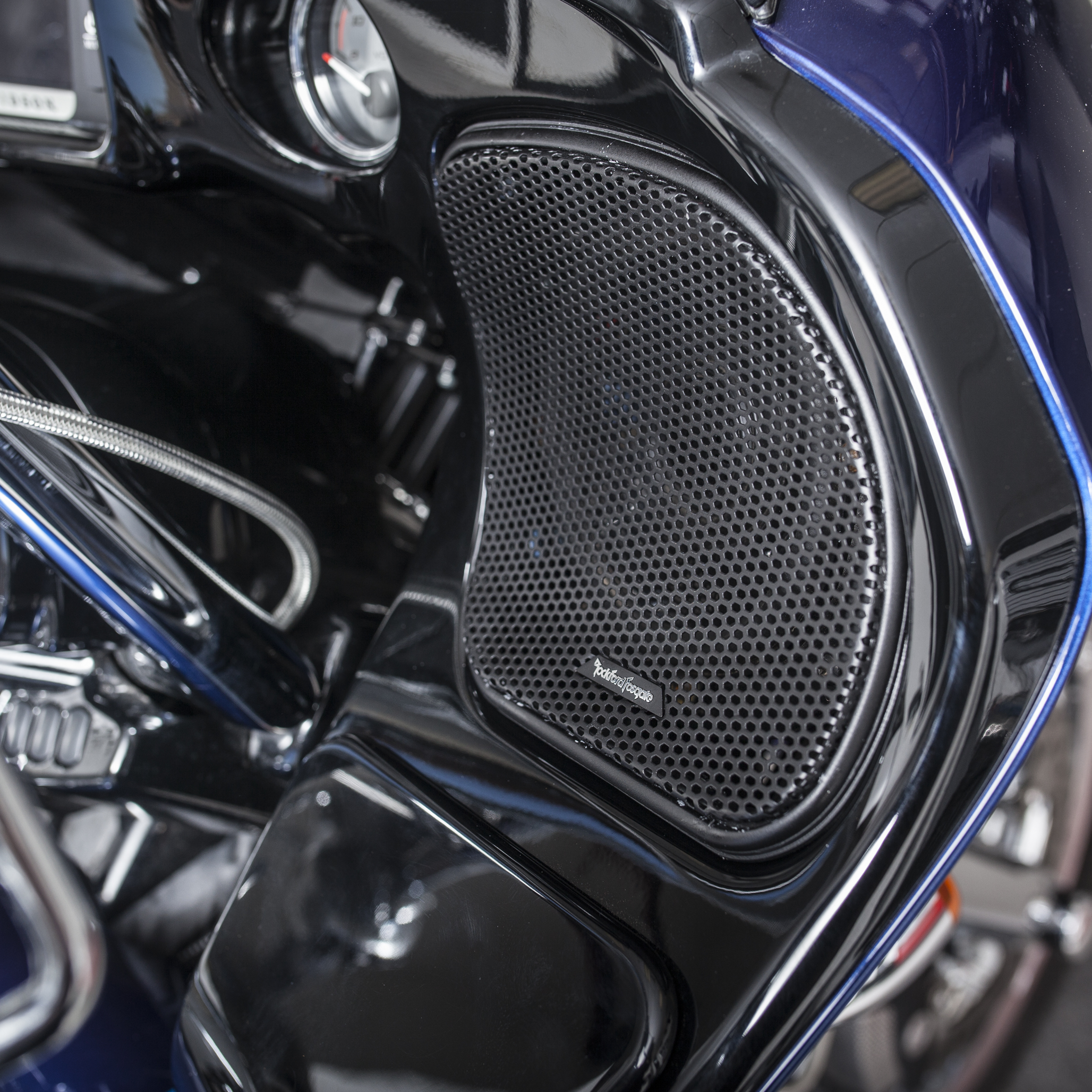

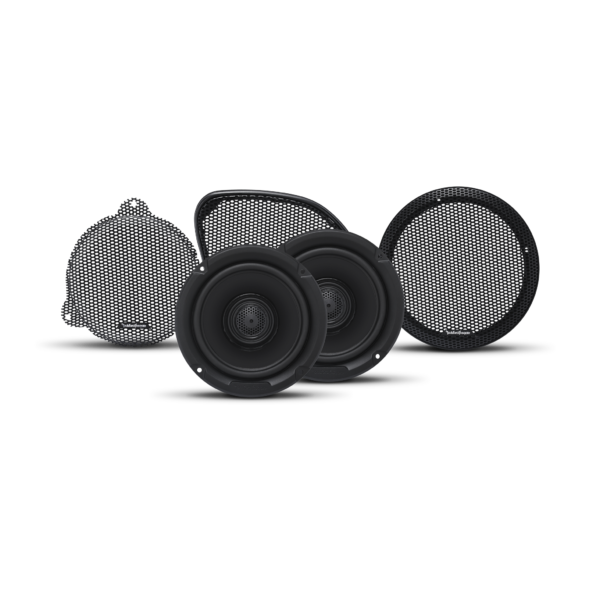

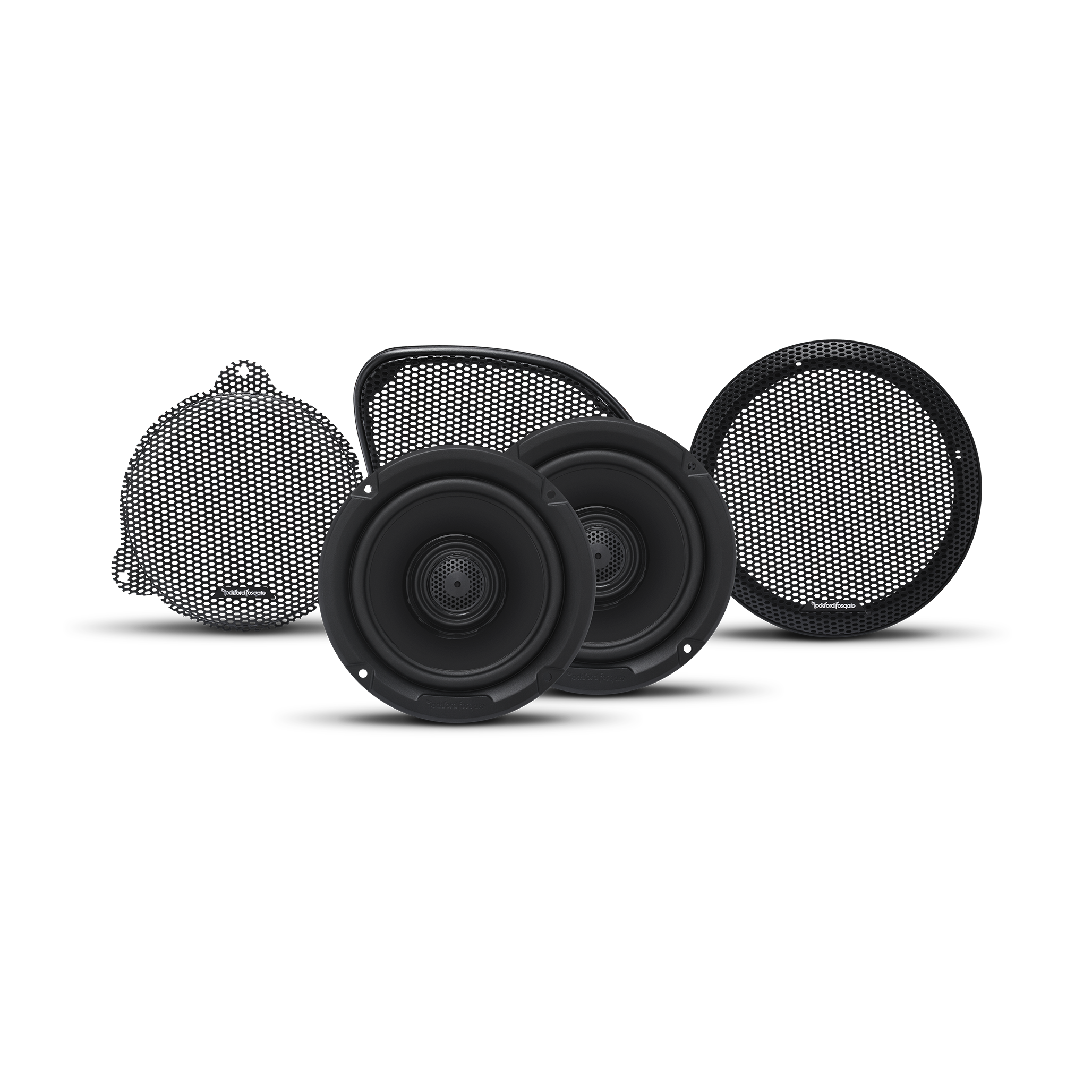

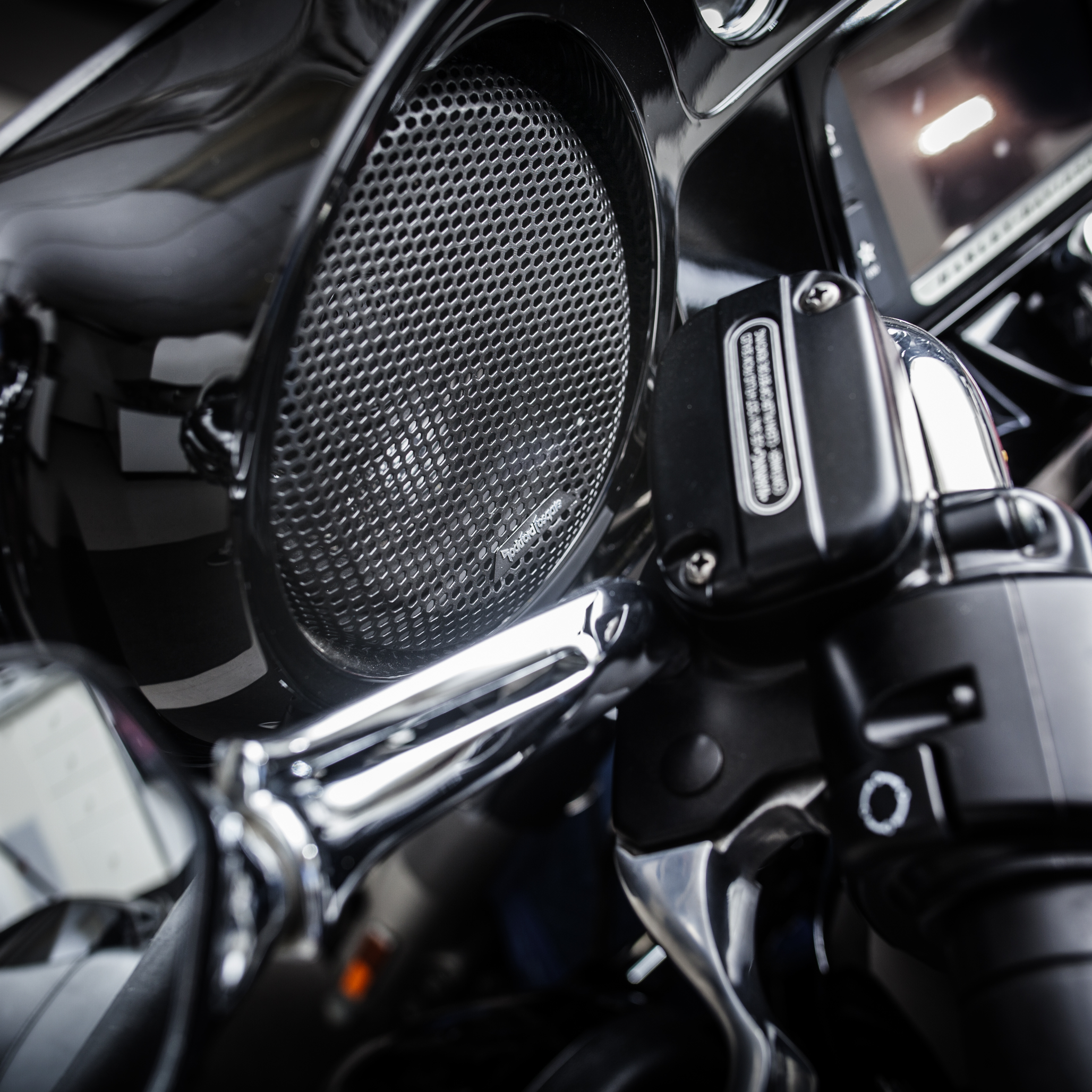

The TMS65 is a full range coaxial speaker designed to fit the upper fairing, lower fairing (non-cooled), and TourPak locations on 2014+ Harley-Davidson® BOOM!™ Audio and BOOM!™ Audio Stage-I systems. It features a Neodymium motor structure driving a co-molded, reinforced polypropylene cone with Santoprene surround. It also features an ultra-efficient 25mm dome tweeter with integrated phase plug and is made water/weather resistant with the addition of a Santoprene front isolation spider connecting between the tweeter housing and cone assembly. The speaker mounts using the factory hardware and comes with three grille assemblies for Sharknose, Batwing and TourPak installations.
The TMS65 full range coaxial speaker is designed for direct fitment application in 2014 and newer Harley-Davidson® motorcycle in the upper fairing, lower fairing (non-cooled), and TourPak locations. This speaker directly replaces the existing factory speakers using the factory mounting hardware and speaker connectors.
It features a compact Neodymium motor structure driving a co-molded, reinforced polypropylene cone with Santoprene surround This ensures that you get maximum frequency response and output in both the mid and low frequency range. It also features an ultra-efficient 25mm dome tweeter with integrated phase plug for crisp clear highs even at highway cruising speeds.
It is made water/weather resistant with the addition of a Santoprene front isolation spider connecting between the tweeter housing and cone assembly. The speaker requires no modification of the factory location and comes with three grille assemblies for Sharknose, Batwing and TourPak installations.
Harley-Davidson® is a registered trademark of Harley-Davidson Motor Company
FEATURES AT A GLANCE
- Ultra-Efficient 25mm Proprietary Film Dome Tweeter
- Element Ready design that is weather and water resistant
- Neodymium Tweeter with Integrated Phase Plug and ASA Grill
- Carbon Fiber Reinforced Polypropylene Cone
- Santoprene VAST Surround
- Grilles for upper fairing, lower fairing (non cooled) and Tour-Pak® included
- Integrated Spade Terminals
- Integrated 6dB Crossover with High Power Polyester Capacitor
- High Power 35mm Voice Coil
- Santoprene Front Isolation Spider
- Poly-Cotton Spider
- Co-Molded Cone and Surround
- 2-Year Warranty
- Ultra-Efficient Neodymium Ring Magnet Motor
- Low Profile Coaxial Tweeter Design
- Discreet (Hidden) Tweeter Wire
- Designed for 2014+ Harley-Davidson® Street Glide®/Road Glide® and Tour-Pak®
- Ultra-High Temperature Glass Reinforced Polymer Frame
The Vertical Attach Surround Technique significantly increases a subwoofer’s effective radiating cone area up to 25%.
Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.
Rockford Fosgate subwoofers use anodized aluminum voice coil formers that provide superior heat dissipation (up to …
All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration.
Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.
(dB @ 2.83V/1M)
(dB @ 2.83V/1M)
(2) 2015+ Road Glide Grilles
(2) 2014+ Street Glide Grilles
(2) 2014+ Tour-Pak Grilles
(1) Hardware Pack
(dB @ 1W/1M)
(Nominal Diameter)
| YEAR | MAKE | MODEL |
|---|---|---|
| 2014-current | Harley Davidson® | Street Glide® 1,2 |
| 2015-current | Harley Davidson® | Road Glide® 1,2 |
1 Compatible with factory Boom! Audio & Boom! Audio Stage-1 systems (non-biamp speakers)
2 Installation on CVO™ and Screaming Eagle™ models are not plug-n-play and will require modification
