Description
Serious sound, made simple. The M5 amplifiers feature the next level of Element Ready™ design from Rockford Fosgate that’s built as rugged as the outdoor environment it’s used in.
Element Ready™: Purpose Built for the Marine Environment, Rockford’s Element Ready™ products are built to stand up to Water, Salt, and UV, making sure your amplifiers stand the test of time.
C.L.E.A.N.: Our Patented circuit with input and output clip indicators help match the source unit to the amplifier, which makes for easy set-up and optimizes musical output.
P.O.W.E.R. Supply: The unique P.O.W.E.R. supply continues to generate more than rated power as the voltage increases, giving you the output, you demand.
M5 Amp Promo
M5 Amp Product Overview
DYNAMIC POWER
Rockford Fosgate amplifiers are known world-wide for producing more power than their ratings suggest. The M5 amplifiers are the first series based on new industry standard Dynamic Power ratings, bringing their conservative ratings to the forefront. Engineered from the ground up and purpose-built to deliver more output where you actually hear it, this is real dynamic power that performs not only on paper, but performance heard through the musical experience. You’ll see two amplifier power ratings, the traditional Continuous Power output, and the new Dynamic Power output, both tested in accordance with the CTA-2006 specification. Consider Continuous Power as wattage developed on the test bench for comparison against other amplifiers in the same class, and Dynamic Power as real-world wattage when connected to a speaker load, listening to music. Either way you look at it, Rockford Fosgate is proving – once again – these amplifiers are powerful enough to drive any speaker or subwoofer you throw at them.
FEATURES AT A GLANCE
- Play all day, easy to integrate, and keep music playing for extended lengths of time
- PRESET removes the need to set-up and tune the amp when used with Rockford Fosgate UTV audio kits
- RATS (Rockford Automated Testing System) proprietary quality & performance tested
- Element Ready™ design with integrated harness & panel seals
- C.L.E.A.N. input/output clip detection and indicator LEDs
- Proprietary Class-AD technology allows amplifier to produce more power with less current draw
- Discrete Surface Mount technology with 1% tight-tolerances for high efficiency & reduced cross-talk
- Constant Power provides instantaneous delivery of output over varying impedance loads
- Focused mass heat sink allows critical aluminum material to be located around hottest internal devices
- Low Impedance Stability
- Class-BD technology provides 75-80% efficiency over traditional class A/B designs
- Top mounted control panel with Element Ready™ smoked lens cover
- OEM and aftermarket radio integration inputs
- MESHA 4 reduces MOSFET temps, lowers distortion, increases durability and prolongs device life span
- Chassis Isolation from mounting points greatly reduces possible introduction of vehicle noise
- Balanced Differential Inputs eliminates noise picked up by signal cables
- Remote-Out feature when using high level inputs
- 2-Year Warranty
Dust – We make sure that displays and motor structures are sealed up tight so they look as clear as possible and perform day in and day out no matter how many times you hit the trails.
UV Inhibitor Materials – Centrex and ASA plastic materials are used for their UV radiation resistance and components are tested in accordance with ASTM D4329 testing and certification procedures.
Corrosion Protection (Electronics) – Two part epoxy coated PCB boards prevent corrosion of critical components due to exposure in moisture rich environments.
Stainless Hardware – Stainless hardware is used due to its natural resistance to corrosion and rusting. This ensures that electrical connections will not degrade over time due to exposure to the elements.
All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration.
Water projected in powerful jets from any direction shall have no harmful effects.
Power ratings on Rockford Fosgate amplifiers conform to CTA-2006 industry standards. These guidelines mean your amplifier’s …
This technology allows the amplifier to produce more power with less current draw from the vehicle’s …
Class-BD amplifiers have 75-80% efficiency ratings vs. 20-60% efficiency ratings of traditional Class-A/B amplifiers.
DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and …
Power supply circuit design that allows the amplifier to increase output power as voltage increases.
Constant Power is a patented circuit topology that provides instantaneous delivery of output power over varying …
Differential inputs eliminate noise picked up by signal cables.
4 (Maximum Efficiency Heat Sink Application – gen. 4) is a proprietary process that yields a better heat transfer than traditional FET mounting techniques, using the exact same components. An insulated metal substrate operating with minimal thermal resistance spreads heat both downward & outward to quickly dissipate heat from each device across the heatsink. This process combined with our optimized heatsink designs, DSM (Discrete Surface Mount) technology and MOSFET devices, allows Rockford Fosgate to squeeze more watts per cubic inch from every output device as well as provide consistent thermal stability. The 4th generation is a ceramic isolator and provides improved EMI and advanced thermal coupling. The higher power handling results in a high reduction in thermal impedance.”>MEHSA4 reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.
C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) is a patented circuit with in/out clip LEDs to help …
- A midbass hump between 100-275Hz
- A steep roll-off of high frequencies from 2kHz up to 20kHz
- Reduced bass response below 50Hz
The NOMAD circuit accomplishes just that. It’s a totally new and very high tech method of dealing with device current and voltage parameters, without being affected by other factors such as heat. Our approach to "real time" protection is one that uses a mathematical transformation which eliminates the problems encountered with trying to do real time multiplication of instantaneous device voltage and current.
Essentially an analog computer calculates at each instant, the maximum allowable level of safe current for each output device, based on their instantaneous voltage drop. This allows the protection to be much more precise than ever before, and ensures reliability.”>NOMAD is a “real time” analog computer that protects your amplifier from shorting speaker wires and …
1. an embodiment or personification, as of a principle, attitude, or view of life
2. a graphical image that represents a person
3. a symbol of ownership
For every Rockford Fosgate product involved in our New Product Development cycle, team members have their Rockford Fosgate Avatar placed on the pc board. This avatar is their way of putting their personal signature on every piece produced to signify "I have done everything possible to ensure our customer receives the best possible product we could develop".
Rockford Fosgate takes pride in knowing that our products are designed and engineered by Rockford Fosgate Fanatics in Tempe, AZ, USA. This is just a part of what makes a Rockford Fosgate customer a Fanatic for Life.”>These Avatars are a personal signature from the Rockford Fosgate team member(s) who designed and engineered …
(Sum of Rated Power)
(RMS Continuous Power)
=1.0% THD+N
100W x 4 + 400W x 1 @ 4O
100W x 4 + 600W x 1 @ 2O
N/A x 4 + 600W x 1 @ 1O
200W x 2 + N/A x 1 @ 4O Bridged
(PVC/PowerCube®)
125W x 4 + 400W x 1 @ 4O
200W x 4 + 700W x 1 @ 2O
N/A x 4 + 700W x 1 @ 1O
400W x 2 + N/A x 1 @ 4O Bridged
Class-BD (sub channel)

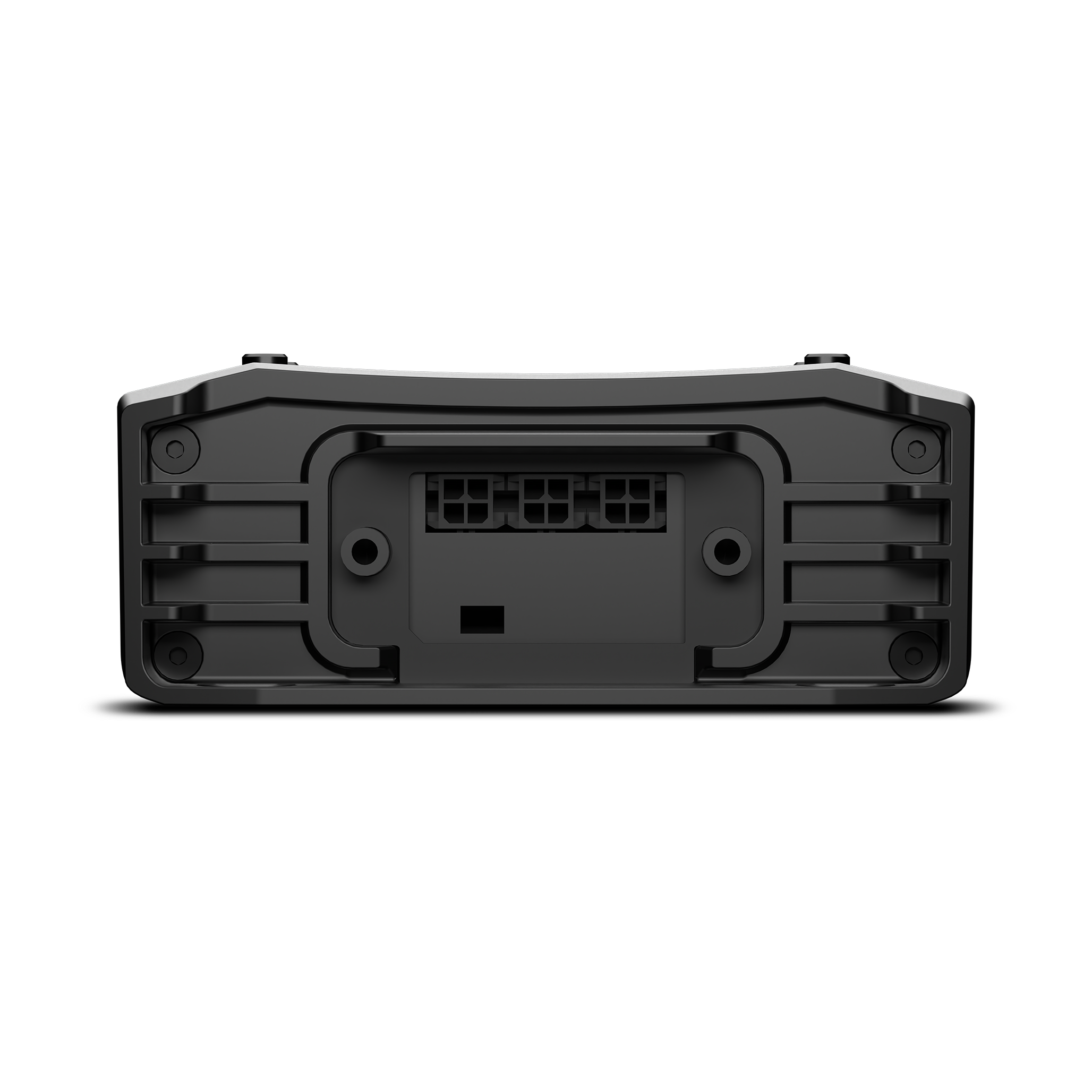

High-Level: 4-Pin Molex
Front/Rear: 0-18dB @ 45Hz
Sub: 0-18dB @ 45 Hz
50 Hz – 250 Hz @ 12dB/Octave Butterworth
Low-Pass:
50 Hz – 250 Hz @ 12dB/Octave Butterworth
Infrasonic:
30 Hz @ 12dB/Octave Butterworth
Protect: Red
Input Clip: Red
Output Clip: Blue/Red
(not included)

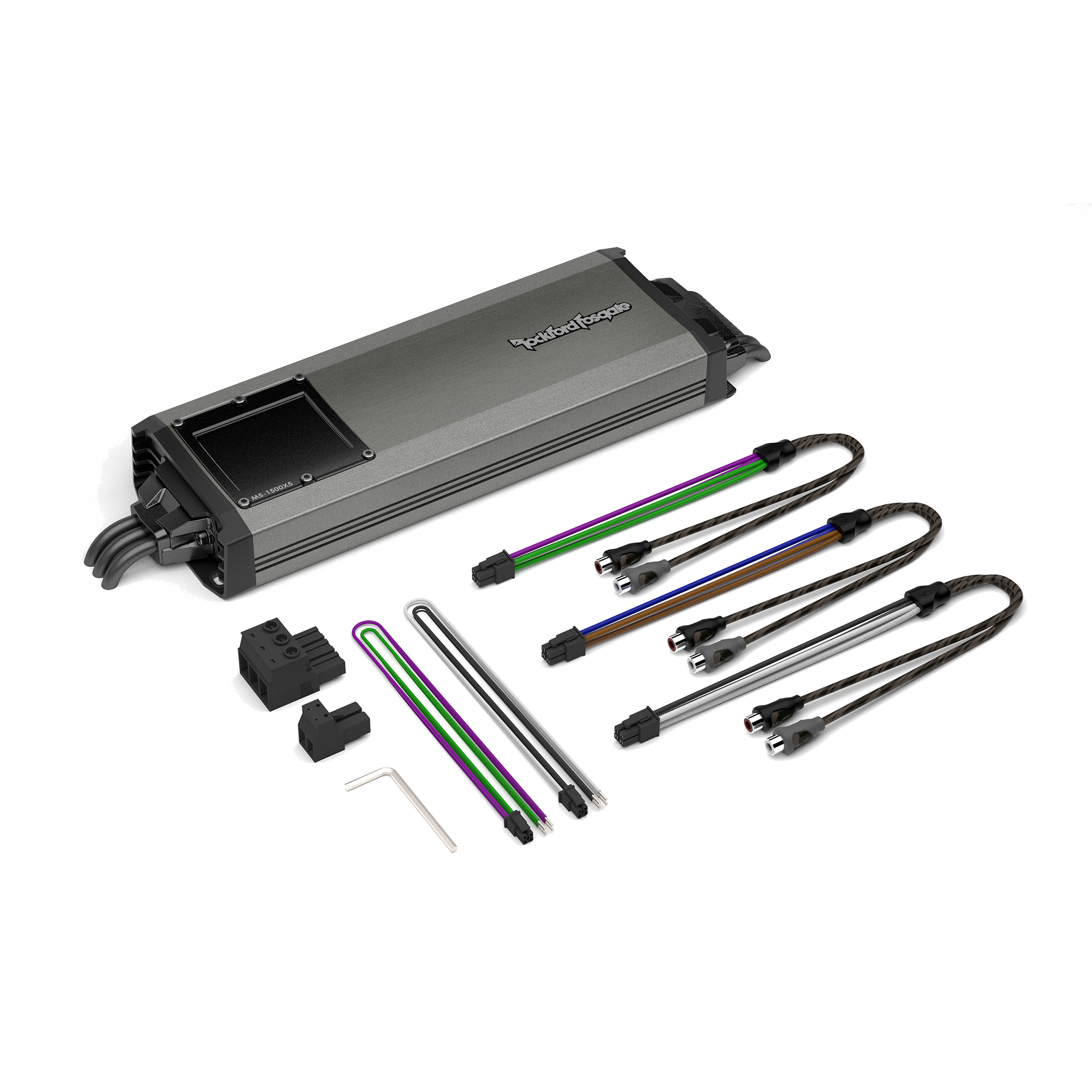

(1) Extension Harnesses (1130-75507-01)
(1) Pwr/Gnd/Rem Connector (1040-60814-01)
(1) Front/Rear/Sub RCA Harness (1130-70118-01)
(1) Front Speaker Out Harness (1560-56568-01)
(1) Rear Speaker Out Harness (1560-56544-01)
(1) Subwoofer Out Connector (1040-56811)
(1) Allen wrench
(1) RF sticker
(1) PRESET warning label
(1) Performance verification certificate
(42.8 mm x 108 mm x 311.4 mm)
Does not include harnesses
