Description

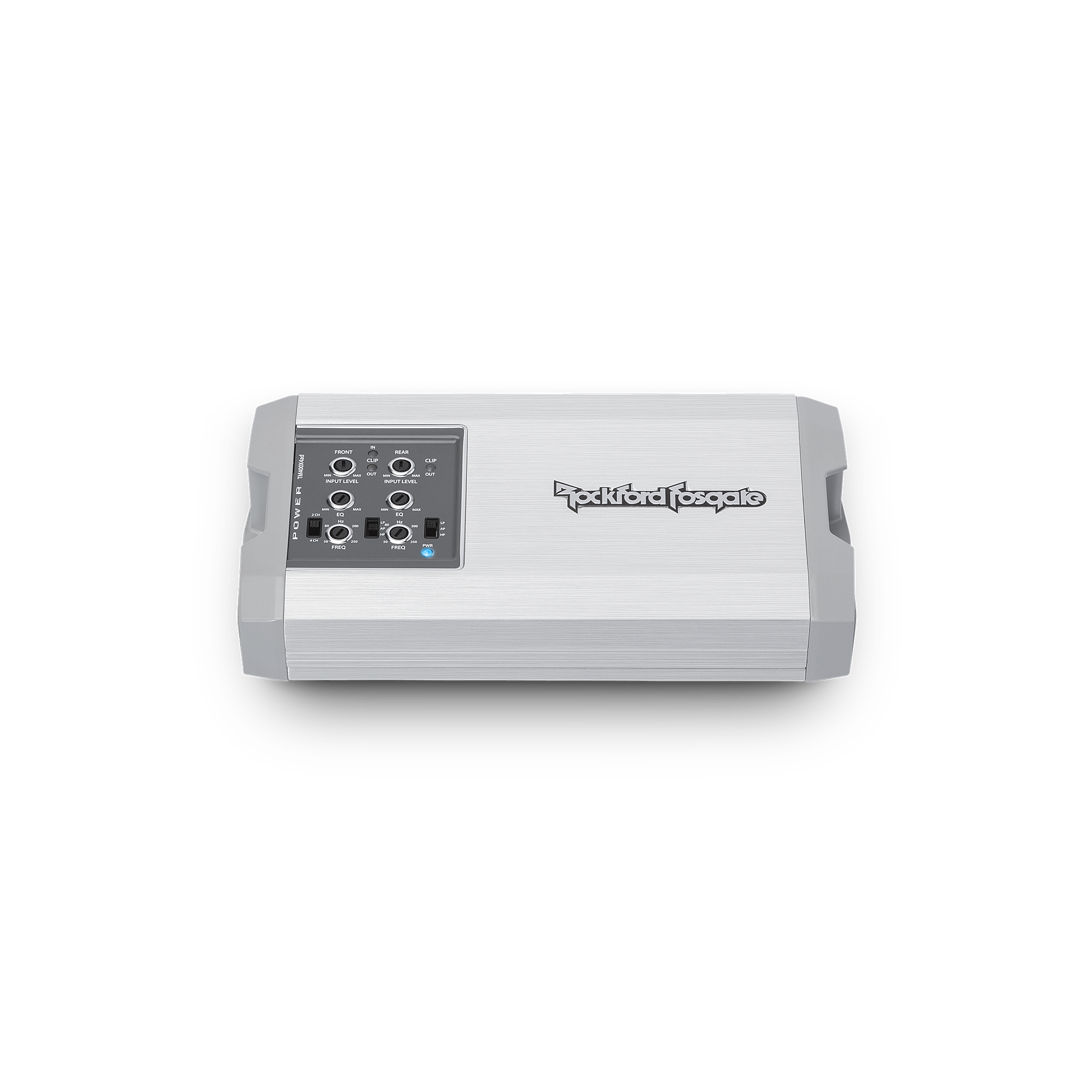

The TM400X4ad is a powerful and compact 400 Watt 4-channel amplifier. The amplifier features our proprietary high efficiency Class-ad topology for maximum power, sound quality and efficiency in full-range amplifier. It also integrates our patented Constant Power technology which results in up to 25% more output power. Top mounted controls feature our patented C.L.E.A.N. circuit to easily set your gains, integrated low-pass crossover, and our famous Punch EQ.
The amplifier also features high and low level inputs combined with our differential inputs to eliminate incoming noise. It can also provide a remote-out trigger when using high level inputs. Dual fan cooling, real time thermal monitoring and dual extruded heat sinks maintain heat dissipation even at high outputs keep the amp cool.
In addition to the conformal coated pc boards, the Element Ready™ design ads protection against water, dust and UV rays, making it great for multiple applications where it could be exposed to harsh outdoor environment.
The Power TM400X4ad 400 Watt 4-channel ultra-compact, amplifier is built on Rockford Fosgate’s proprietary Class-AD technology, featuring Constant Power to produce the same output at both 4-Ohm and 2-Ohm impedances. Flexible vehicle integration enabled through low-level and high-level inputs with auto turn-on. Top mounted controls allow easy access to built-in crossover and C.L.E.A.N. input/output clip detection circuits. The 3-stage thermal lock extrusion with dual fan forced induction keeps everything cool while real-time thermal/protection schemes safeguard the amplifier.
FEATURES AT A GLANCE

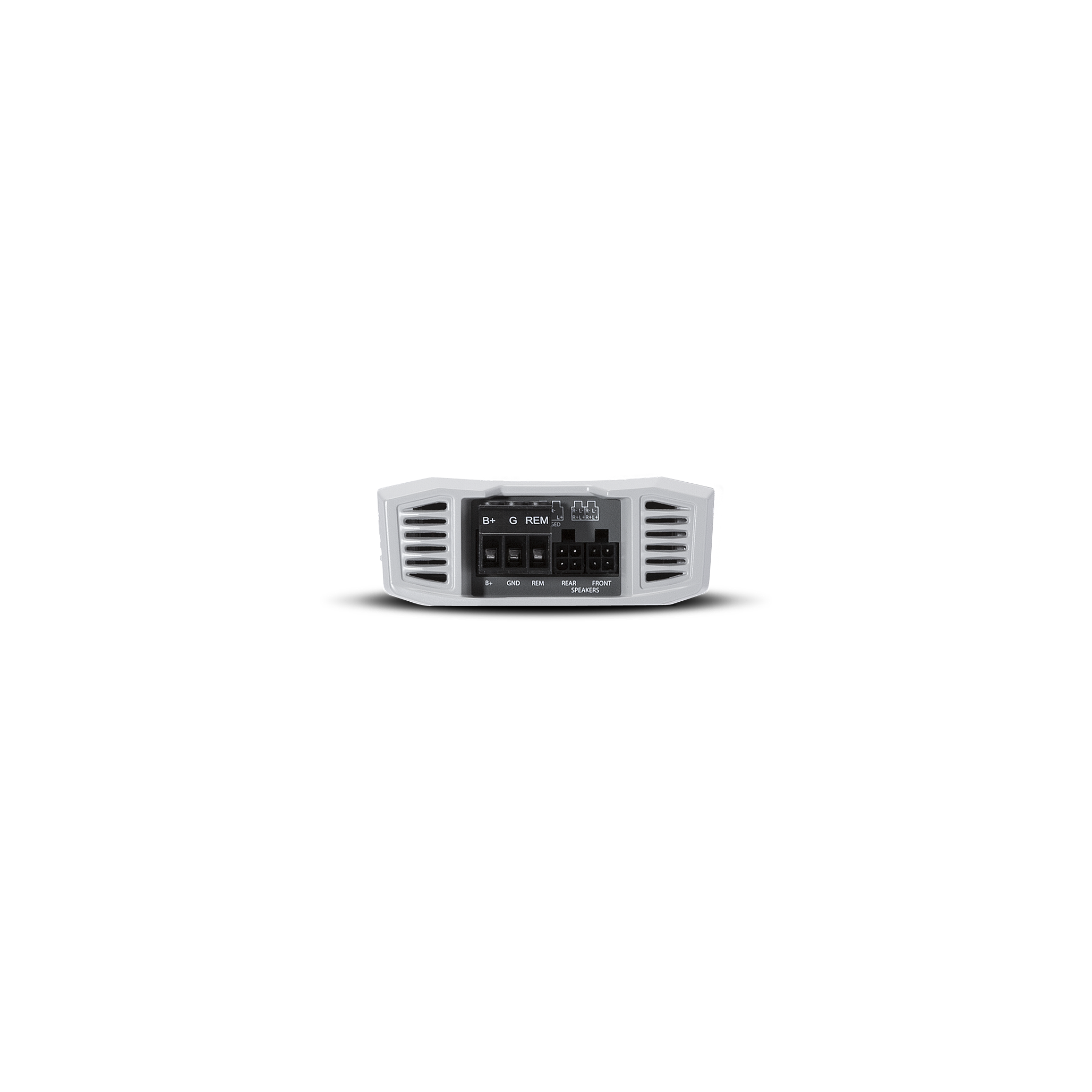

- 8 AWG power/ground connector w/ upgraded RCA connectors
- Rockford Fosgate proprietary Class AD technology
- Differential inputs with high level auto turn-on feature
- Remote-Out feature when using high level inputs
- C.L.E.A.N. input/output clip detection and indicator LEDs
- Dual extruded heat sinks
- 4/2 Ohm muti-impedance Constant Power
- Discrete surface mount technology

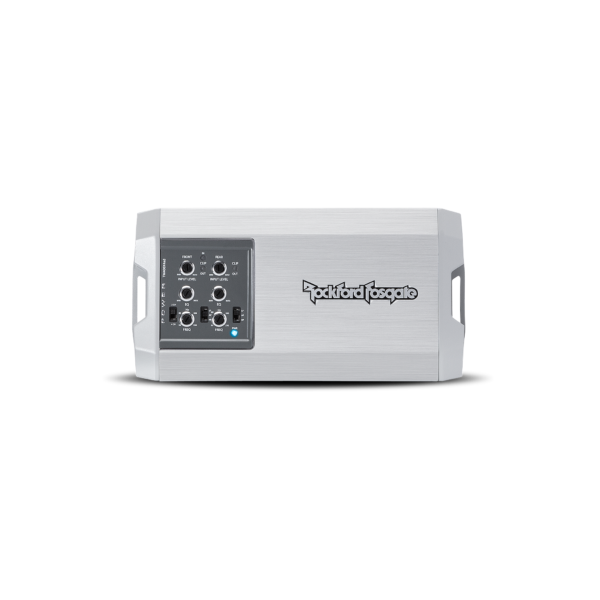

- Top mounted controls
- Real time thermal sensing
- Dual fan cooled
- 4 Ohm bridged capable
- 2/4 channel input switch
- 2-Year Warranty
- Marine grade two part epoxy coating on circuit boards
DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and …
Constant Power is a patented circuit topology that provides instantaneous delivery of output power over varying …
This technology allows the amplifier to produce more power with less current draw from the vehicle’s …
C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) is a patented circuit with in/out clip LEDs to help …
(Sum of Rated Power)
(RMS Continuous Power)
100 Watts x 4 @ 2-Ohm
200 Watts x 2 @ 4-Ohm Bridged
(PVC/PowerCube®)
152 Watts x 4 @ 2-Ohm
290 Watts x 2 @ 4-Ohm Bridged
Front Terminals: Left (+) Right (-)
Rear Terminals: Left (+) Right (-)
2-Ohm: <1.0%

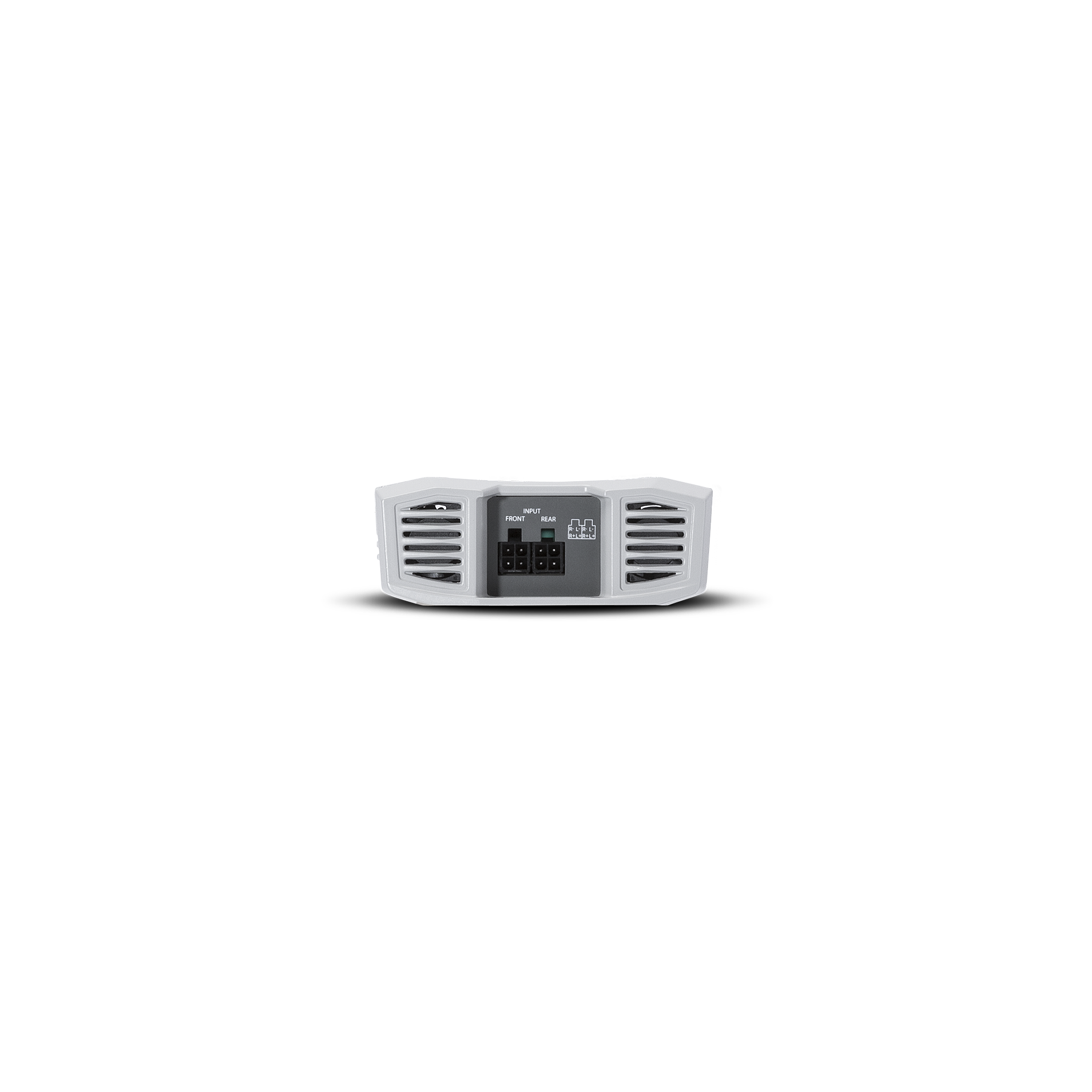

Rear High/Low Level Input: 4-Pin harness
Bass: 0 to +18 dB @ 45 Hz
50Hz-250Hz @ 12dB/Octave Butterworth
Low-Pass:
50Hz-250Hz @ 12dB/Octave Butterworth
All-Pass: Yes
Protect: Red LED
Input Clip: Red LED3
Output Clip: Blue/Violet/Red LED1,2,3
LED Color Legend:
1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD
Replacement 1040-57997
Rear: 4-Pin Harness
(not included)
4.1 x 10.8 x 21.1 (cm)
