Description
The next step in motorcycle performance, our M5 audio kits are the loudest and clearest audio systems we’ve created. Featuring simple plug-and-play installation and paired with freeway speed output all create the best in class on bike audio experience.
Plug-and-Play Design: Designed to work right out of the box. Everything is included to make for easy installation and all to ensure less time in the garage and more time out riding.
Full Throttle Output: Audio engineered to perform on the open road. Speakers and amplifiers specifically tuned and designed to not only overcome wind, road, and exhaust noise, but to give you that second to none audio experience on your bike.
RF3 (Rockford Factory Fit and Finish): Designed and engineered to match and compliment the factory fit and finish of your bike. These components are purpose built to the exact specifications to ensure the best-in-class fitment and look.
Element Ready™: Purpose built for the harsh motorcycle environment. The speakers and amplifier are designed to stand up to water, dirt, UV, and motorcycle vibration, ensuring that your audio system will stand the test of time.
Bluetooth Control: The source unit features an ultra-bright 7-inch display and provides class leading features including, day/night modes, oversized buttons easy mode selection, and is SiriusXM ready.
Compatibility Chart: Please review below tab for fitment before purchasing.
PMX-HD14 | Product Overview
M5 Audio Kits | Product Overview
2014+ Street Glide PMX-STG2 | Installation
2015+ Road Glide PMX-STG2 | Installation
PMX-HD14 | Quick Start Guide
M5 2014+ Amp | Tuning Guide
PMX-HD14 | Software Updates
EXPANDABLE PERFORMANCE

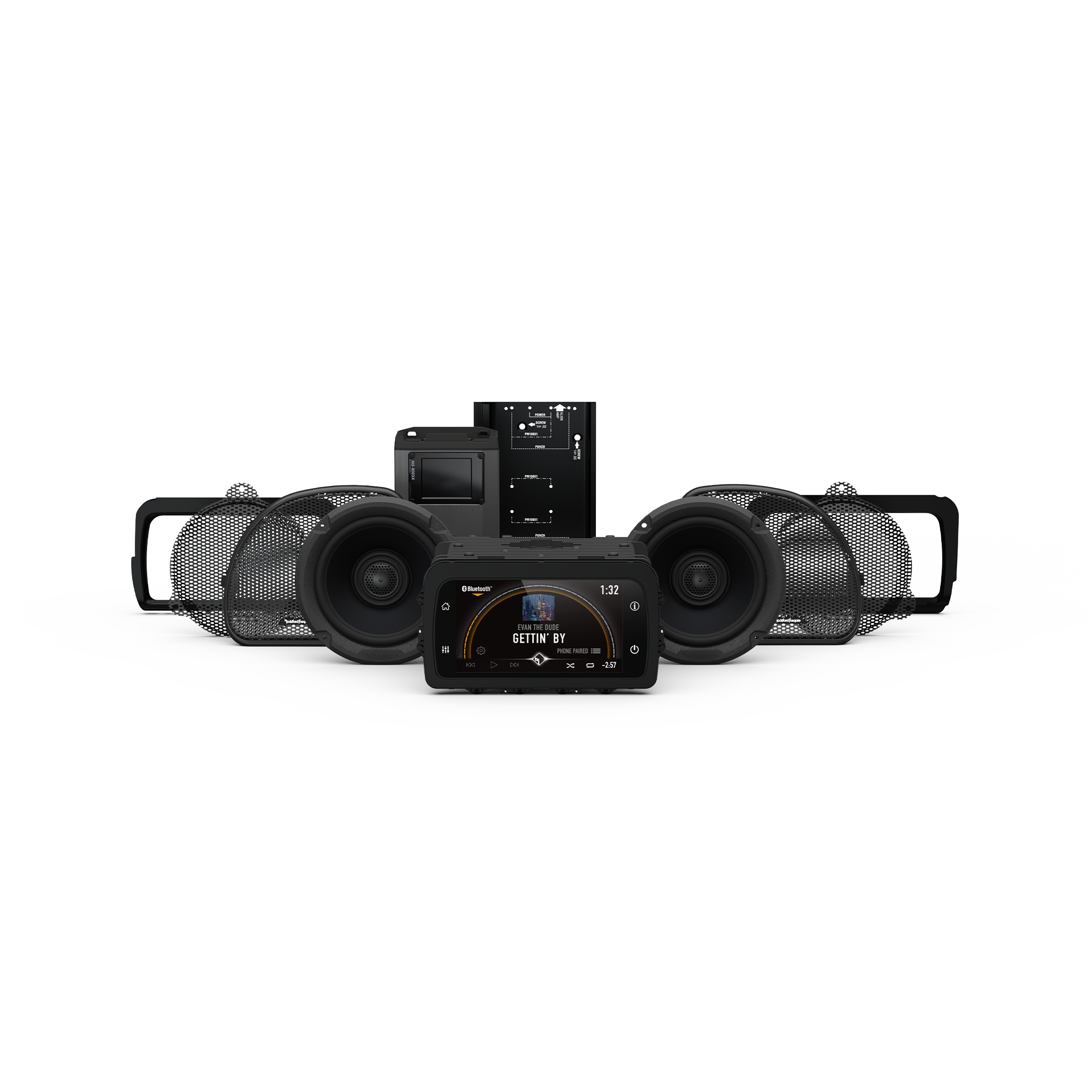

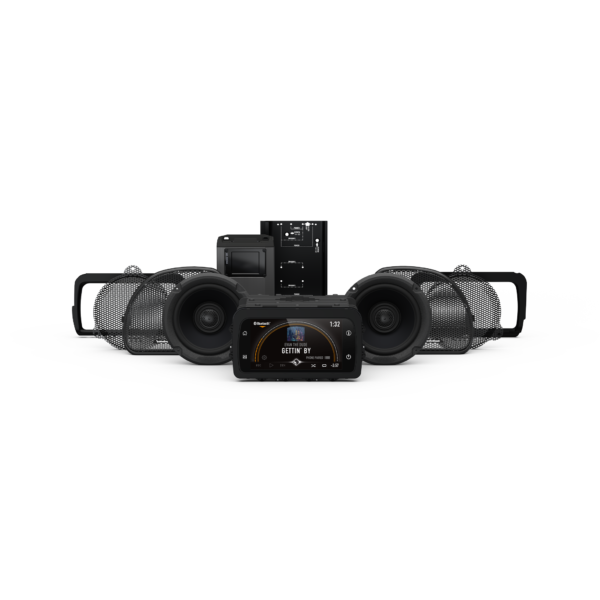

The HD14-PMX-STG2 is a high-performance 2-speaker, 800-watt amplified audio system that includes:
• (1) infotainment source unit
• (2) 6.5″ fairing speakers
• (1) 800W 4-channel amp
• (1) amp installation kit
Upgrade this kit to STG3 by adding:
• (1) 6×9” saddlebag kit (see below)
Upgrade this kit to STG5 by adding:
• (1) 6×9” saddlebag kit (see below)
• (1) 10” dual sub kit (see below)
Refer to our COMPATIBILITY chart to verify fitment before purchasing.
FEATURES AT A GLANCE
- Plug and Play design for easy installation
- Kits bolt to factory attachment points
- No drilling or cutting required
- PMX-HD14: Infotainment Source Unit for Select 2014+ Harley-Davidson® Models
- 2014+ Harley-Davidson® direct replacement digital media receiver
- Y-adaptors supports expansion of speakers in lower fairing, saddlebag, or Tour-Pak®
- No need to “flash” your radio
- T-harness features loop-thru for Digital Signal Processor (DSR1 sold separately)
- RFK-HD14M5: Amp install kit for M5-800X4 on 2014+ Harley-Davidson® models
- M5-800X4: 800-watt 4-channel IPX6 Element Ready™ amplifier
- TMS65: 6.5″ 2-way Element Ready™ speaker with integrated phase-aligned 25 mm tweeter
- Speakers custom tuned to hear music over wind, road & exhaust noise at highway speed
- Direct connect wiring harnesses for Harley-Davidson® models
- T-harness supports front/rear fader (requires flash: “Rockford Fosgate 2014+ All Bikes”)
- Retains factory thumb control functionality with no additional parts
- RATS (Rockford Automated Testing System) proprietary quality & performance tested
- 90-degree harness included with amp install kit for Road Glide® installations
- Klippel Verified certification program delivers the best possible loudspeakers
- 2-Year Warranty
This source unit supports playback from a USB device.
This radio is ready to accept SiriusXM programming.
Wirelessly stream audio to your unit with any compatible Bluetooth™ device.
A Thin-Film Transistor (TFT) is a field-effect transistor (FET) where the transistor is grown directly on …
Made for iPhone means this product has been designed to connect specifically to iPhone and has …
This source unit supports MP3 file format playback.
Components are tested for salt spray corrosion resistance.
Displays and motor structures are sealed tight so they look and sound as clear as possible …
Stainless hardware is used to its natural resistance to corrosion and rusting. This ensures electrical connections …
Components are designed to withstand extreme temperature fluctuations ensuring they perform day-in and day-out.
Centrex and ASA plastic materials are used for their UV radiation resistance and components are tested …
Components are able to withstand shock and vibration conditions common with outdoor vehicles.
(1 pr) TMS65
(1 ea) M5-800X4
(1 ea) RFK-HD14M5
YES Model IS compatible |
NO Model NOT compatible |
NOT AVAILABLE Model not produced this year |
|---|
YESH-D® CB |
YESSiriusXM™ SXV300 |
NOH-D® SiriusXM™ |
COMPATIBLEBoom!™ Audio1 |
NOBoom!™Stage I2 |
NOBoom!™Stage II2 |
NOH-D® by RF®Stage IRF2 |
NOH-D® by RF®Stage IIRF2 |
|---|
| MODEL | CHASSIS | 2014 | 2015 | 2016 | 2017 | 2018 | 2019 | 2020 | 2021 | 2022 | 2023 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Electra Glide® Revival | FLH | — | — | — | — | — | — | — | ✔ | — | ✔ |
| Electra Glide® Standard NR | FLHT | — | — | — | — | — | X | X | X | X | — |
| Road Glide® | FLTRX | — | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Road Glide® ST | FLTRXST | — | — | — | — | — | — | — | — | ✔ | ✔ |
| Road Glide® Special | FLTRXS | — | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Road Glide® Special 120th Anniversary | FLTRXSANV | — | — | — | — | — | — | — | — | — | ✔ |
| Street Glide® | FLHX | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Street Glide® ST | FLHXST | — | — | — | — | — | — | — | — | ✔ | ✔ |
| Street Glide® 115th Anniversary | FLHXANV | — | — | — | — | ✔ | — | — | — | — | — |
| Street Glide® Special | FLHXS | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Street Glide® Special 115th Anniversary | FLHXSANV | — | — | — | — | ✔ | — | — | — | — | — |
| Street Glide® Special 120th Anniversary | FLHXSANV | — | — | — | — | — | — | — | — | — | ✔ |
| MODEL | CHASSIS | 2014 | 2015 | 2016 | 2017 | 2018 | 2019 | 2020 | 2021 | 2022 | 2023 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CVO Road King® | FLHRSE | X | — | — | — | — | — | — | — | — | — |
| CVO Softail Deluxe | FLSTNSE | X | X | — | — | — | — | — | — | — | — |
| Electra Glide Highway King | FLHFB | — | — | — | — | — | — | — | — | — | X |
| Road King® | FLHR | — | X | X | X | X | X | X | X | X | — |
| Road King® Classic | FLHRC | X | X | X | X | X | X | — | — | — | — |
| Road King® Special | FLHRXS | — | — | — | X | X | X | X | X | X | X |
| MODEL | CHASSIS | 2014 | 2015 | 2016 | 2017 | 2018 | 2019 | 2020 | 2021 | 2022 | 2023 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Road Glide® Limited | FLTRK | — | — | — | — | — | — | ✔ | ✔ | ✔ | ✔ |
| Road Glide® Ultra | FLTRU | — | — | ✔ | ✔ | ✔ | ✔ | — | — | — | — |
| Electra Glide® Ultra Classic® | FLHTCU | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | — | — | — | — |
| Electra Glide® Ultra Classic® Twin-Cooled | FLHTCU | ✔ | ✔ | ✔ | — | — | — | — | — | — | — |
| Electra Glide® Ultra Classic® Low | FLHTCUL | — | ✔ | ✔ | — | — | — | — | — | — | — |
| Electra Glide® Ultra Classic® Low Twin-Cooled | FLHTCUL | — | ✔ | ✔ | — | — | — | — | — | — | — |
| Ultra Limited | FLHTK | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Ultra Limited 115th Anniversary | FLHTKANV | — | — | — | — | ✔ | — | — | — | — | — |
| Ultra Limited 120th Anniversary | FLHTKANV | — | — | — | — | — | — | — | — | — | ✔ |
| Ultra Limited Low | FLHTKL | — | ✔ | ✔ | ✔ | ✔ | ✔ | — | — | — | — |
| Ultra Limited Shrine Edition | FLHTK | — | — | — | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| MODEL | CHASSIS | 2014 | 2015 | 2016 | 2017 | 2018 | 2019 | 2020 | 2021 | 2022 | 2023 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CVO Ultra Limited | FLHTKSE | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | — | — |
| CVO Limited 115th Anniversary | FLHTKSEANV | — | — | — | — | ✔ | — | — | — | — | — |
| CVO Pro Street Breakout | FXSE | — | — | X | X | — | — | — | — | — | — |
| CVO Road Glide® | FLTRXSE | — | — | — | — | X | X | X | XRF2 | XRF2 | XRF2G2 |
| CVO Road Glide® Limited | FLTRKSE | — | — | — | — | — | — | — | — | XRF1 | — |
| CVO Road Glide® Limited 120th Anniversary | FLTRKSEANV | — | — | — | — | — | — | — | — | — | XRF1 |
| CVO Road Glide® Ultra | FLTRUSE | — | ✔ | ✔ | — | — | — | — | — | — | — |
| CVO Softail Breakout | FXSBSE | X | — | — | — | — | — | — | — | — | — |
| CVO Street Glide® | FLHXSE | — | X | X | X | X | X | X | XRF2 | XRF2 | XRF2G2 |
| MODEL | CHASSIS | 2014 | 2015 | 2016 | 2017 | 2018 | 2019 | 2020 | 2021 | 2022 | 2023 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Freewheeler®NR | FLRT | — | X | X | X | X | X | X | X | X | X |
| Road Glide 3 | FLTRT | — | — | — | — | — | — | — | — | — | ✔ |
| Tri Glide® Ultra Classic® | FLHTCUTG | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Tri Glide® Ultra 115th Anniversary | FLHTCUTGANV | — | — | — | — | ✔ | — | — | — | — | — |
| Tri Glide® Ultra 120th Anniversary | FLHTCUTGANV | — | — | — | — | — | — | — | — | — | ✔ |
| CVO Tri Glide® | FLHTCUTGSE | — | — | — | — | — | — | ✔ | ✔ | XRF1 | — |
GRAY TEXT
indicates nomenclature used on some early models and later inherited.
1
Boom! Audio un-amplified systems are compatible.
2
Boom! Audio Stage I & Stage II systems with external amplifier(s) are not compatible.
NR
No Radio equipped from factory. Make compatible with (2) Harley-Davidson #69200247 fairing speaker harnesses, PMX-HD14 source unit, and TMS65 speakers.
RF1
RF Stage I: Upgradable radio only. Factory equipped with “Harley-Davidson Audio Powered by Rockford Fosgate” 2-way speakers and saddlebag amplifier.
RF2
RF Stage II: Upgradable radio only. Factory equipped with “Harley-Davidson Audio Powered by Rockford Fosgate” 3-way speakers and saddlebag amplifier.
RF1G2
RF Stage I Gen-2: Not upgradable. Factory equipped with “Harley-Davidson Audio Powered by Rockford Fosgate” 2-way speakers and saddlebag amplifier.
RF2G2
RF Stage II Gen-2: Not upgradable. Factory equipped with “Harley-Davidson Audio Powered by Rockford Fosgate” 3-way speakers and saddlebag amplifier.
