Description

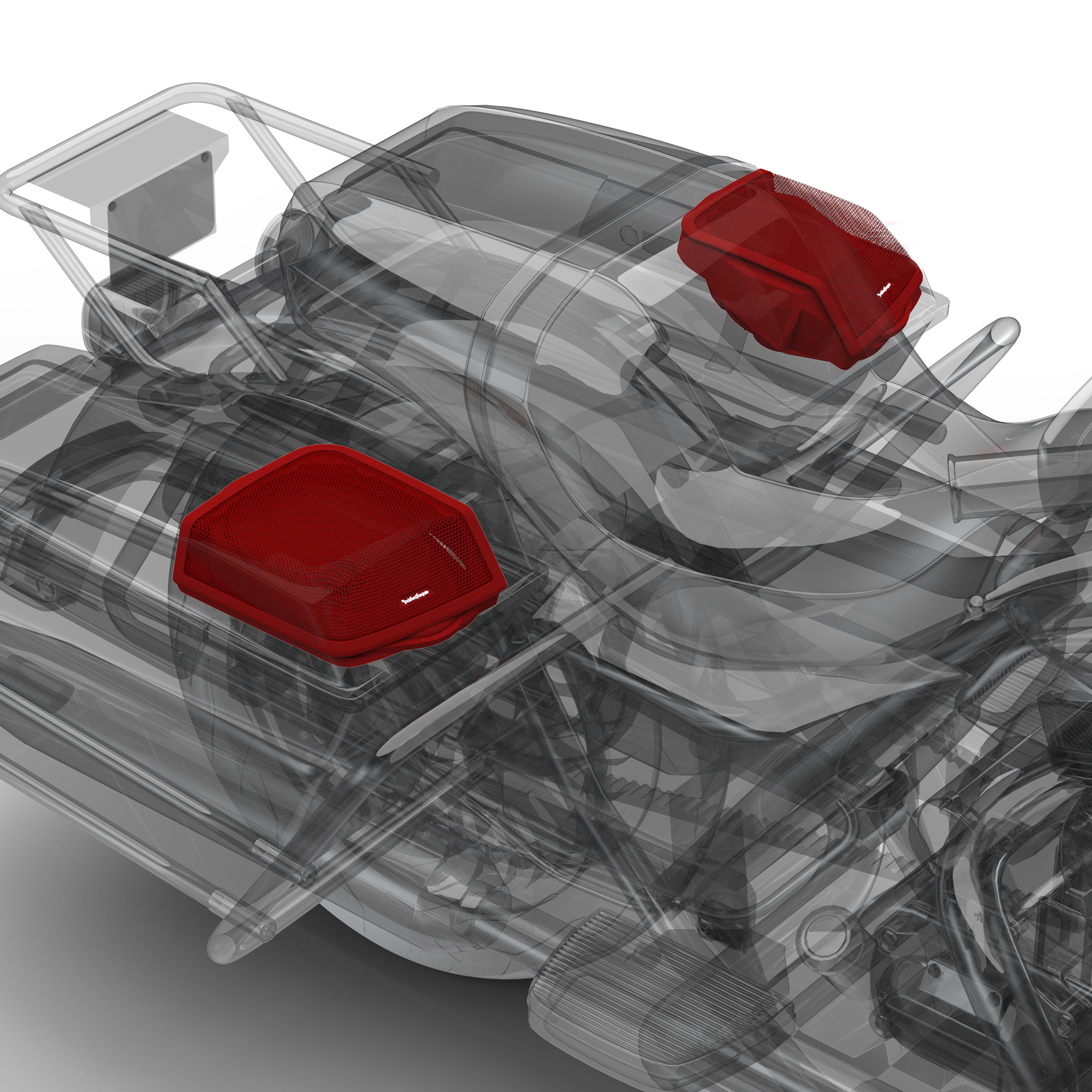

Retrofit kit allows addition of rear speakers on your existing factory bag lids and plug directly into a Rockford Fosgate front audio kit that utilizes the Power T400X4ad, TM400X4ad, and M5-800X4 4-channel amplifier. Eliminates need to paint and color match. Not designed for factory amplifiers. Refer to our COMPATIBILITY chart to verify fitment before purchasing.
TMS69BL14 & TMS69BL9813 Installation

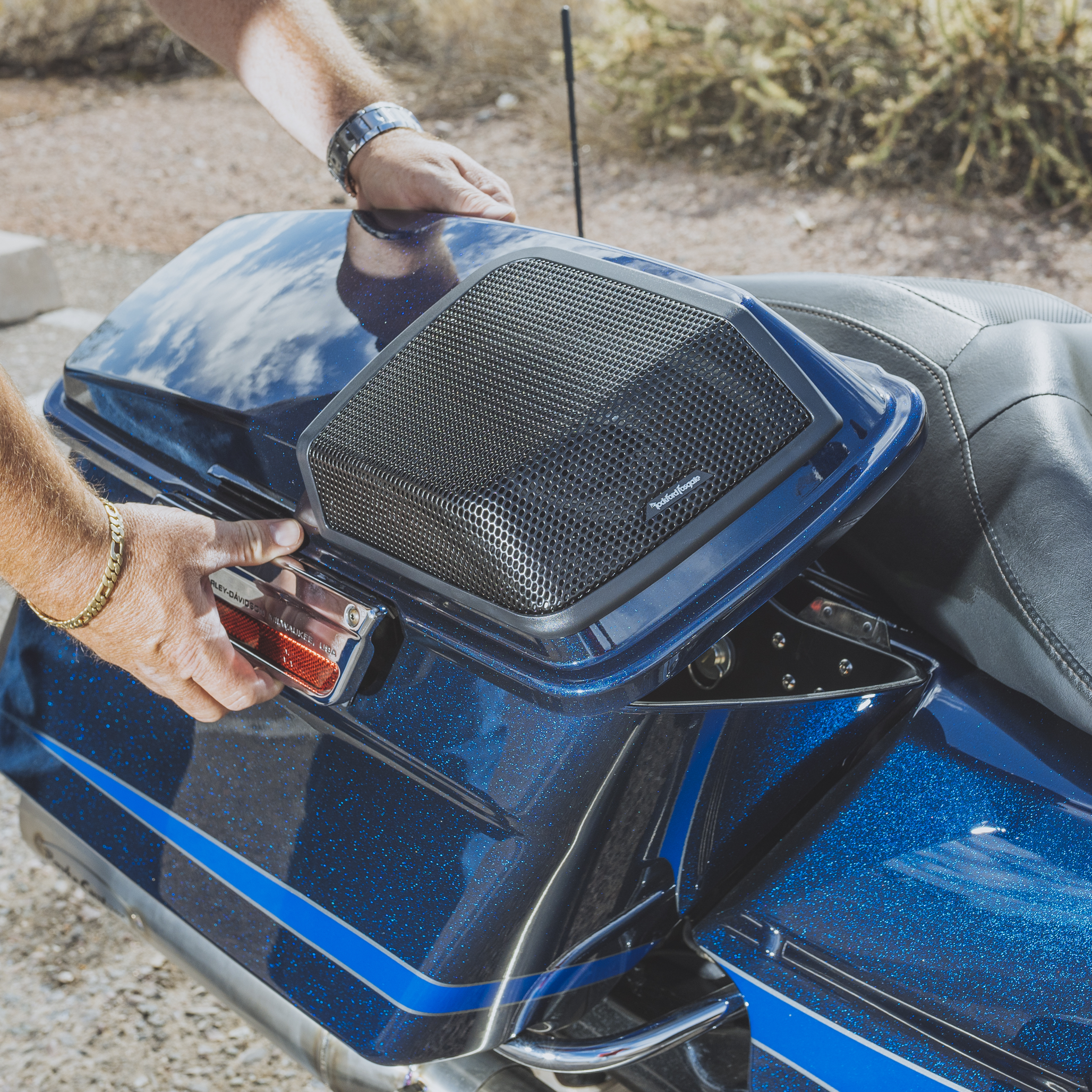

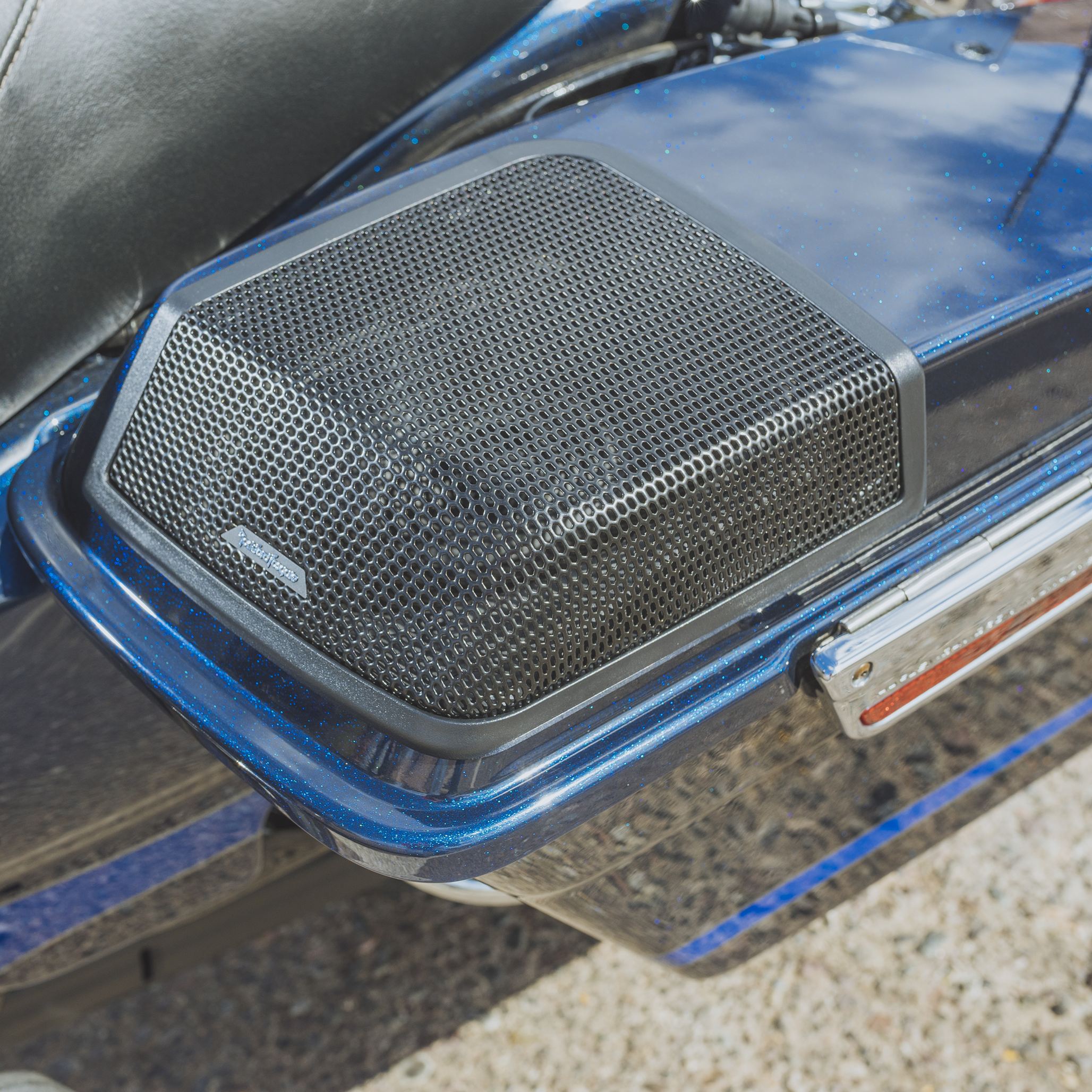

If you need more than just two speakers and want to really feel your music while riding then check out our add-on bag lid audio solution. Centered around our TMS69 6×9″ speaker this kit is designed to work with existing OEM bag lids. This means no extra parts to purchase or custom paint schemes to match. Easy to install using our included cutting template and two-piece mounting system you can quickly add on to an existing or new fairing audio kit using with the included plug and play harness. This system is designed to plug directly into the Rockford Fosgate Power T400X4ad or TM400X4ad 4-channel amplifier. Not designed for factory amplifiers.
Harley-Davidson®, Road Glide®, and Street Glide® are registered trademarks of Harley-Davidson Motor Company
FEATURES AT A GLANCE
- Direct Connect Wiring Harness to Rockford Fosgate Amplifiers
- Designed for use with existing 1998-2013 Rockford Fosgate Stage kits
- Designed for use with 1998-2013 Factory Harley-Davidson® Hardshell Bags
- Ultra-High Temperature Glass Reinforced Polymer Frame
- Painted Stamped Steel Grill with ASA Plastic Frame for UV Protection
- Leave 2″ minimum clearance under speaker magnet when packing bags
- Patent Pending

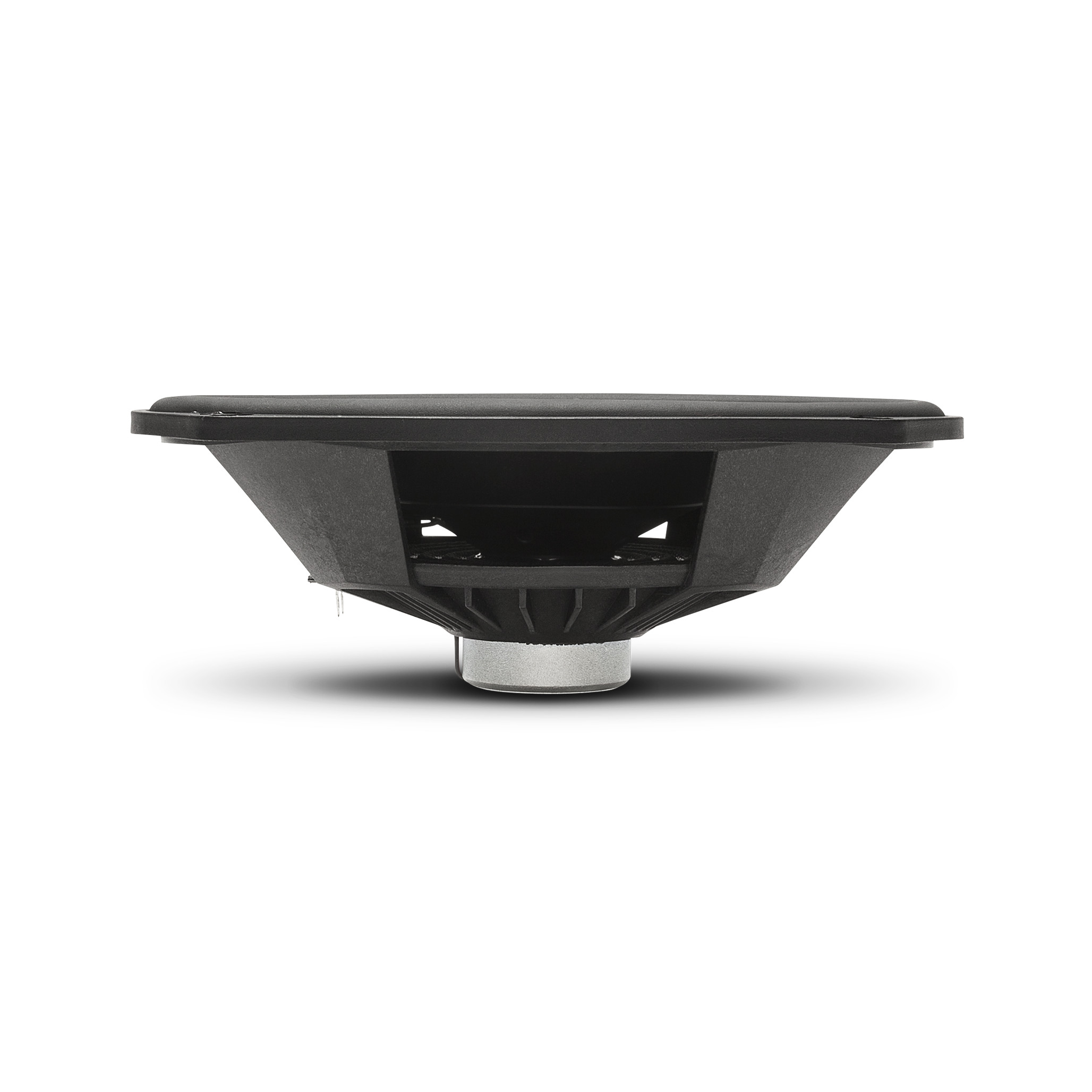

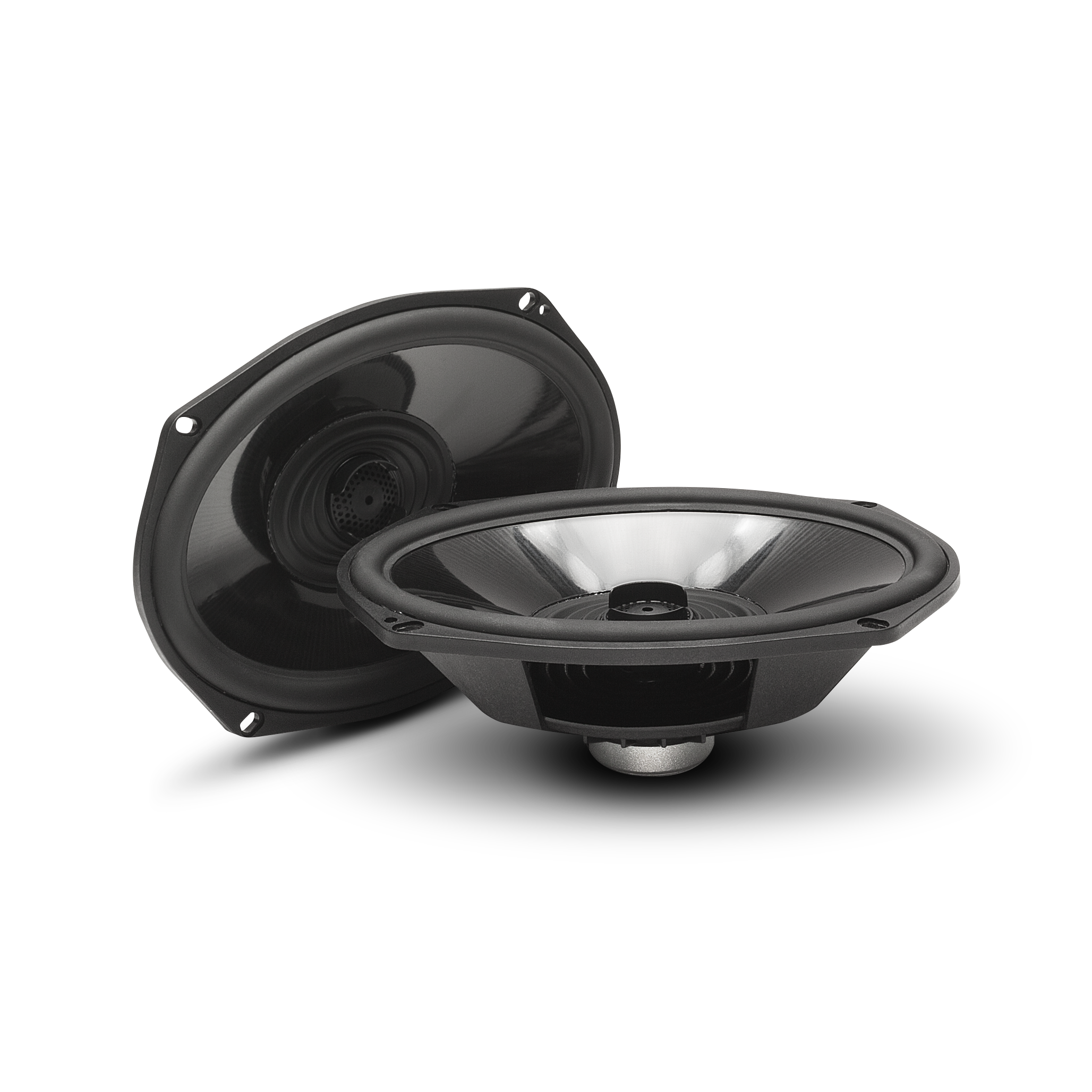

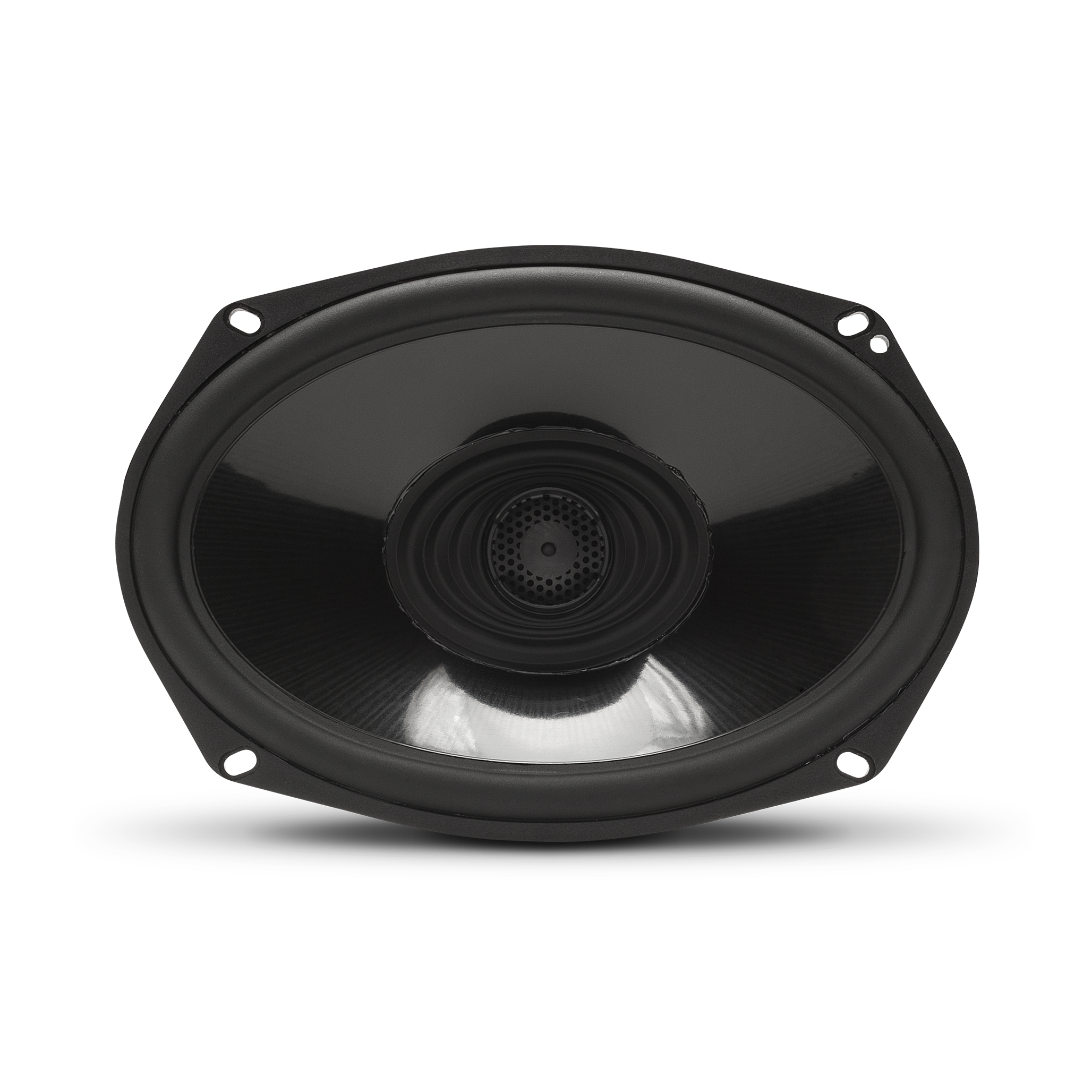

- TMS69: 6×9” Element Ready™ 2-way speakers with integrated phase-aligned 25 mm tweeter
- Includes all Installation Hardware and Accessories
- Includes Custom Cut Out Guide
- Sandwich Clamping Gasket Design for Environmental Seal
Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.
All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration.

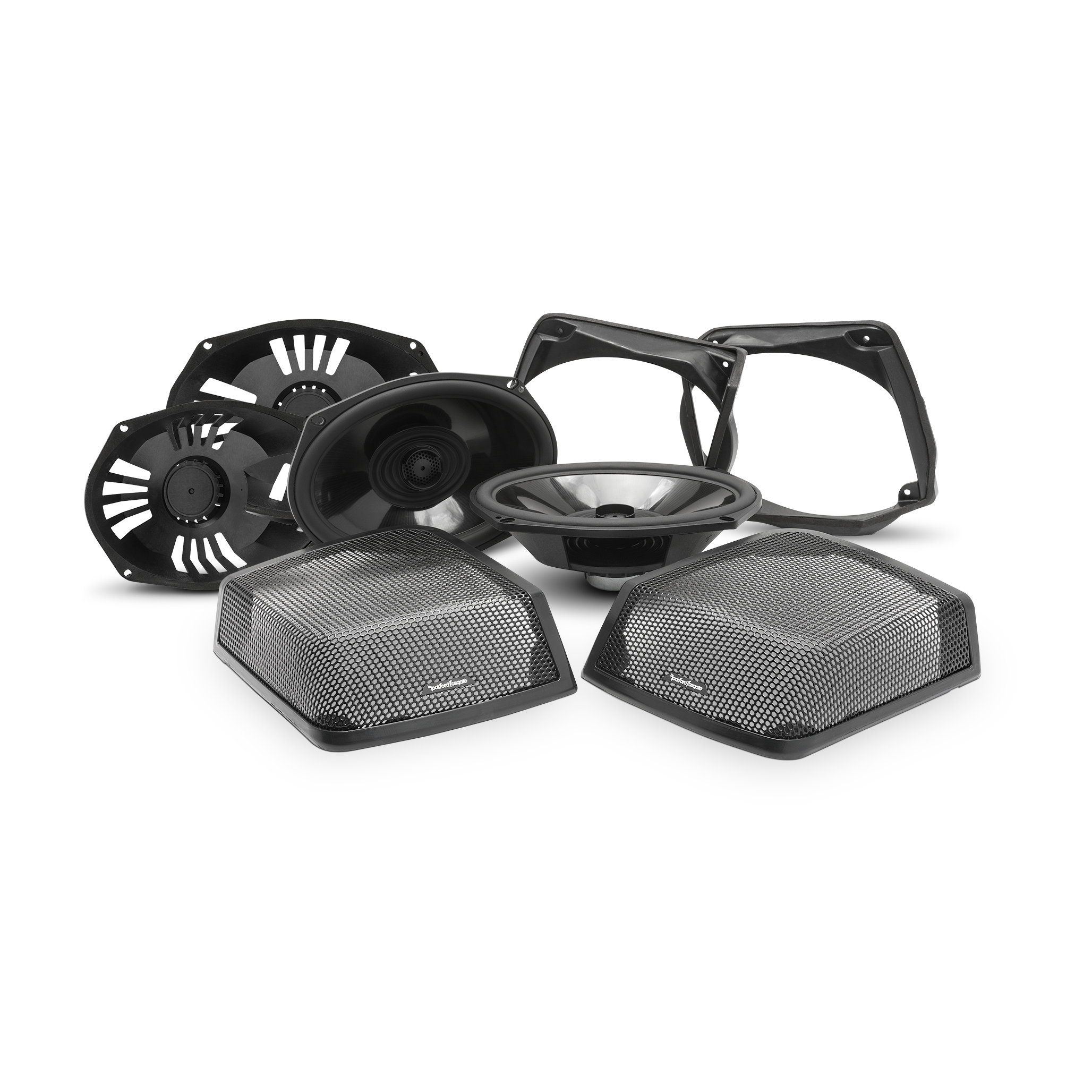

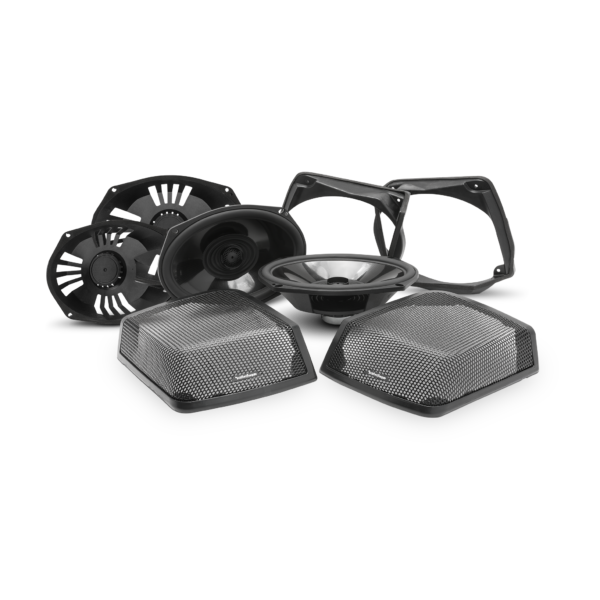

(2) Speaker Grilles

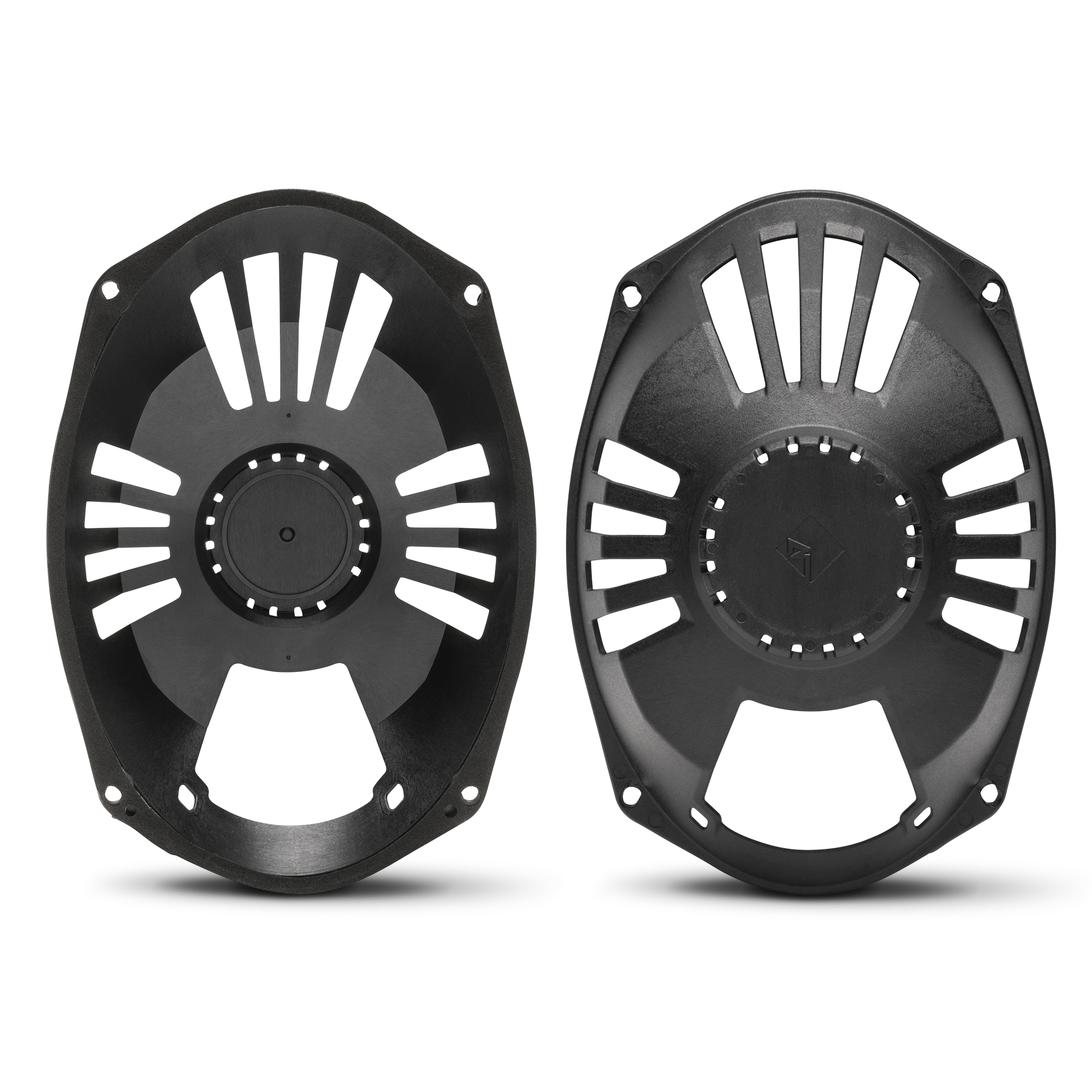

(2) 6″x9″ Basket Protectors

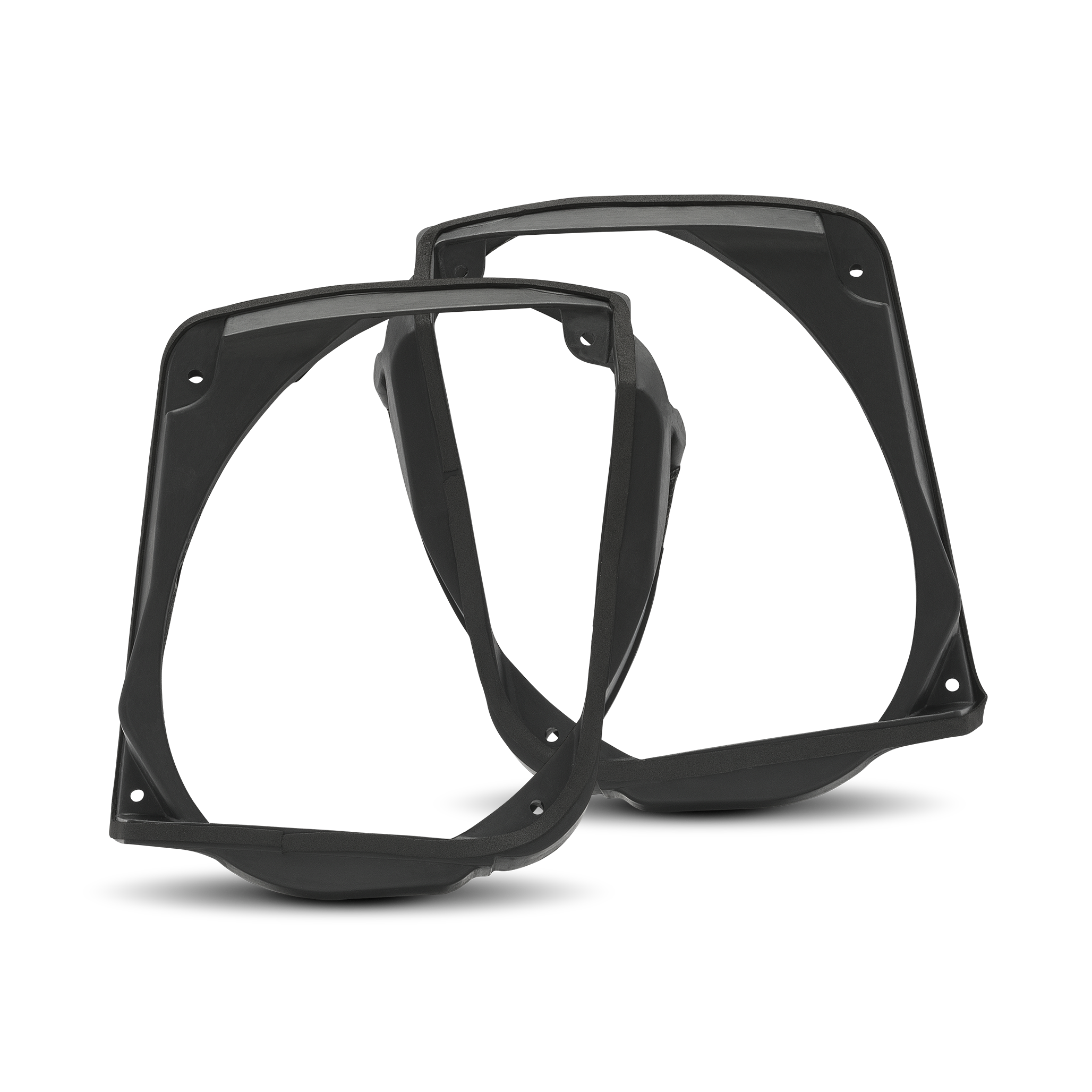

(2) Mounting Rings
(2) Cutting Templates
(1) Main Harness
(2) Saddlebag Harnesses
Plastic Wire Tie Wraps
Plastic Cable Tie Mounts
(8) 1125-77147-01, Phillips Black Oxide Steel Screw with Washer, M4x1.4, 23mm L
(12) 1125-62036-01, Pan Head Phillips Black Oxide Steel Screw, Plastic Cut, M4x1.4, 12mm L
YES Model IS compatible |
NO Model NOT compatible |
NOT AVAILABLE Model not produced this year |
|---|
NOH-D® Power Lock2 |
YESH-D® ABS Saddlebags3 |
COMPATIBLEH-D® Stretched Saddlebags3 |
NOFiberglass Saddlebags3 |
|---|
| YEAR | MAKE | MODEL | CHASSIS | FAIRING |
|---|---|---|---|---|
| 1998—2013 | Harley-Davidson® | Road King® | FLHR | — |
| 2002—2003 | Harley-Davidson® | Screaming’ Eagle® Road King® | FLHRSEI | — |
| 2013 | Harley-Davidson® | CVO Road King® | FLHRSE5 | — |
| 1998–2013 | Harley-Davidson® | Electra Glide® Standard | FLHTI | Bat Wing |
| 1998–2013 | Harley-Davidson® | Electra Glide® Ultra Classic® | FLHTCU | Bat Wing |
| 2010–2013 | Harley-Davidson® | Electra Glide® Ultra Limited | FLHTK | Bat Wing |
| 1998–2013 | Harley-Davidson® | Road Glide® | FLTR | Shark Nose |
| 2012 | Harley-Davidson® | Road Glide® Custom | FLTRX | Shark Nose |
| 1998-2013 | Harley-Davidson® | Road Glide® Ultra | FLTRU | Shark Nose |
| 2006–2013 | Harley-Davidson® | Street Glide® | FLHX | Bat Wing |
GRAY TEXT
indicates nomenclature used on some early models and later inherited.
1
Factory Radio from Harley-Davidson® must be flashed.
Read advisory for more information.
2
H-D® Power Lock for touring luggage not compatible with 6×9″ bag-lid kit.
3
Saddlebags must be factory Harley-Davidson® ABS plastic to insure proper fitment with bag-lid and subwoofer kits.
Fiberglass saddlebags and bag-lids not compatible.
4
Stretched Saddlebags not optimized for kits with subwoofers. Contact technical support for suggested harness brace.
5
Tour-Pak® must be detached in order to install and remove subwoofer enclosures.
NR
No Radio equipped from factory.
RF1
RF Stage I: Not upgradable. Factory equipped with “Harley-Davidson Audio Powered by Rockford Fosgate” 2-way speakers and saddlebag amplifier.
RF2
RF Stage II: Not upgradable. Factory equipped with “Harley-Davidson Audio Powered by Rockford Fosgate” 3-way speakers and saddlebag amplifier.
RF1G2
RF Stage I Gen-2: Not upgradable. Factory equipped with “Harley-Davidson Audio Powered by Rockford Fosgate” 2-way speakers and saddlebag amplifier.
RF2G2
RF Stage II Gen-2: Not upgradable. Factory equipped with “Harley-Davidson Audio Powered by Rockford Fosgate” 3-way speakers and saddlebag amplifier.
