Description

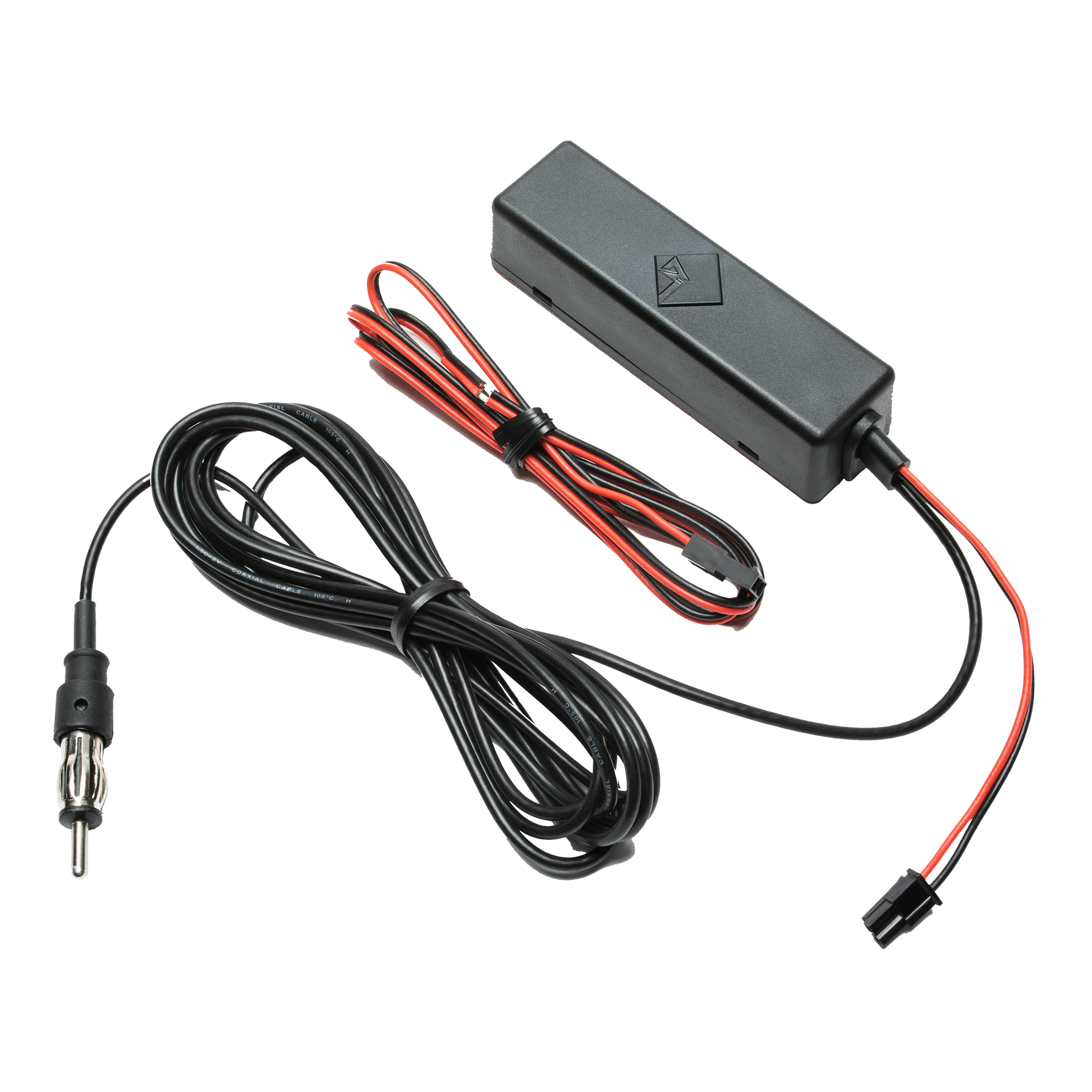

The PMX-ANT is an amplified antenna for use with Rockford Fosgate PMX source units to boost radio signals in distant areas.
The PMX-ANT is a powered antenna designed to boost AM/FM and WB (weather band) stations. It’s universal connectivity allows for use in Marine or UTV installation through a quick power connector.
FEATURES AT A GLANCE
- Universal AM/FM/WB Antenna
- 12VDC Powered for +20dB of Signal Gain
- Omnidirectional
- IP67 Water & Dust Rated
- Double Sided Tape Mounting

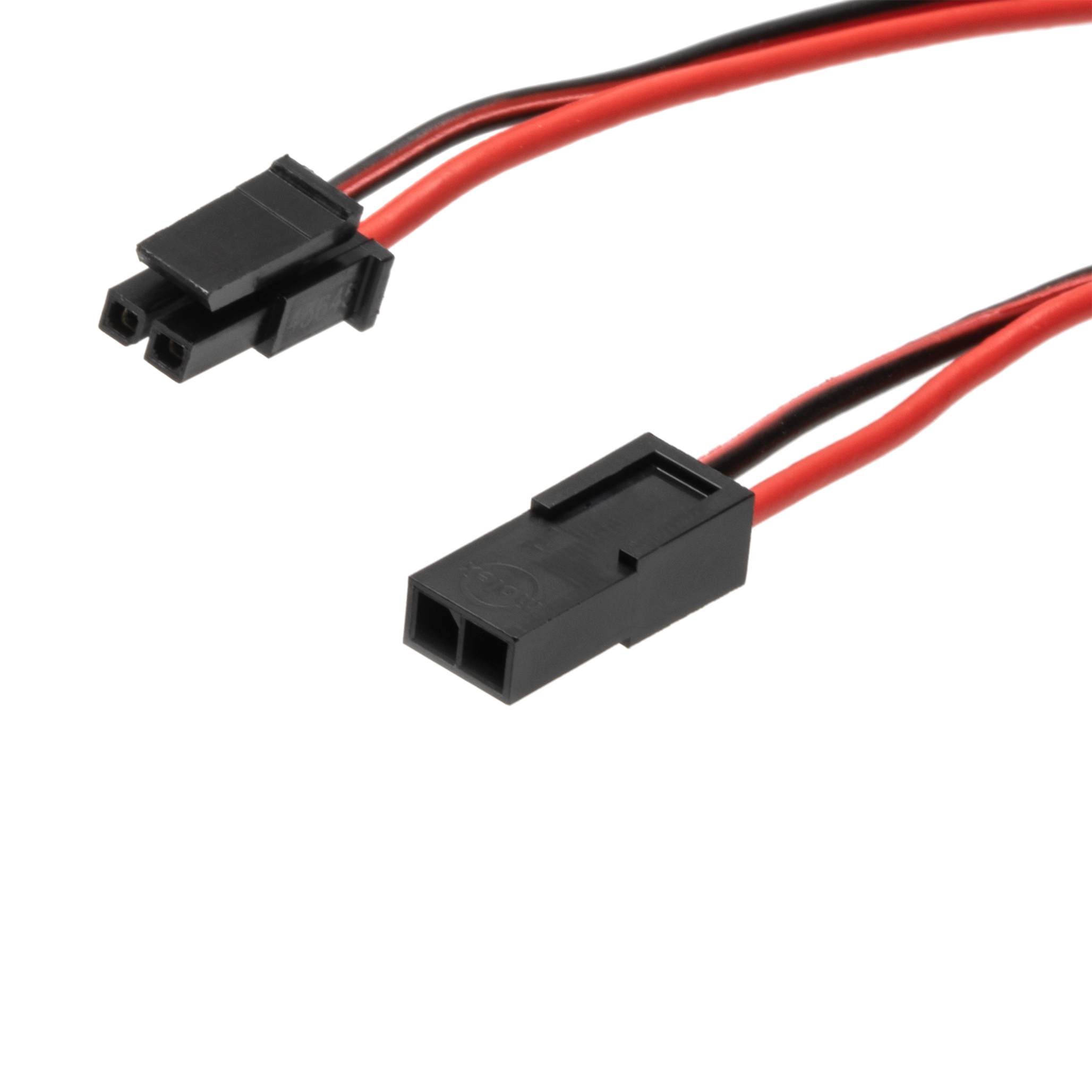

- Quick Power Connect for Easy Installation
Dimensions (HxWxD)
0.96 in. x 1.11 in. x 3.89 in
(24.5 mm x 28.2 mm x 98.7 mm)
(24.5 mm x 28.2 mm x 98.7 mm)
Idle Current
< 20 mA
Signal Boost Range
Unpowered: 0 dB
Powered: 20 dB
Powered: 20 dB
Operating Voltage
9 – 16 VDC
Operating Temperature
-30? to 70?
(-34? to 21?)
(-34? to 21?)
Cable Length
Power: 3.58 ft. (109 cm)
Antenna: 8.4 ft. (256 cm)
Antenna: 8.4 ft. (256 cm)
Shipping Weight
0.5 Lbs. (0.2 Kg.)
| MODEL | DESCRIPTION |
|---|---|
| PMX-2 | Punch Marine Compact AM/FM/WB Digital Media Receiver 2.7″ Display |
| PMX-3 | Compact Digital Media Receiver w/ 2.7″ Display |
| PMX-5 | Punch Marine AM/FM/WB Digital Media Receiver 2.7″ Display |
| PMX-5CAN | Punch Marine AM/FM/WB Digital Media Receiver 2.7″ Display w/ CAN bus |
| PMX-8BB | Punch Marine Hide-Away AM/FM/WP Digital Media Receiver |
