Winch Fairleads

Roller Fairlead Our durable VIPER ATV / UTV roller fairlead will reduce wear on your steel winch cable and greatly assist with angled pulls. It has Delron bushings & Zinc plated rollers that stand up to the toughest task. The black mount is…

SKU: Viper-Frld

Description

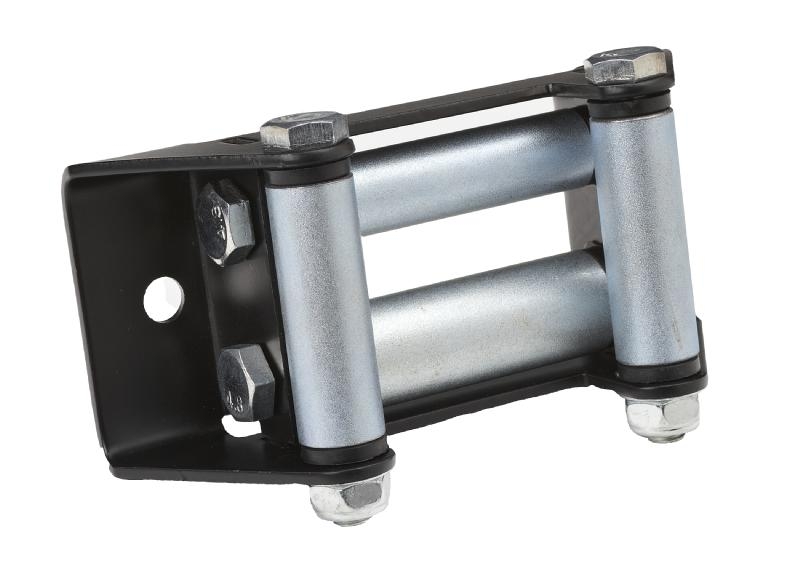

Roller Fairlead

Our durable VIPER ATV / UTV roller fairlead will reduce wear on your steel winch cable and greatly assist with angled pulls.  It has Delron bushings & Zinc plated rollers that stand up to the toughest task.  The black mount is powder coated using an industrial grade process.  Actual measurements are 6 3/8″ (L) x 2 1/2″ (H); Bolt dimensions are 4 7/8″ center to center of bolt holes. Stainless steel hardware included.

All installation hardware is included.

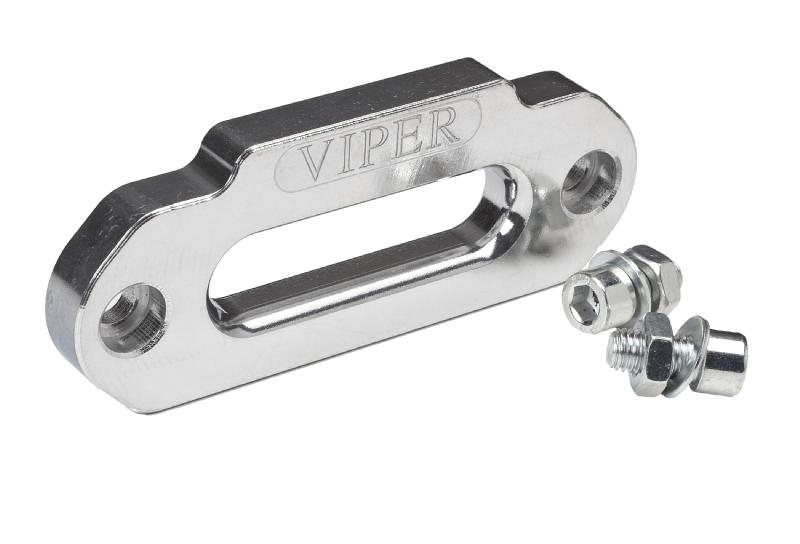

Aluminum Hawse Fairlead

Designed specifically for your ATV, reduce wear & tear on your AmSteel®-Blue synthetic cable with this fairlead. Stainless steel mounting hardware is included.  Bolt dimensions are 3/8″-16 x 3/4″, 5/16″ allen head.

Aluminum Hawse – Standard Spool – The standard version’s mount holes are 4 7/8” on center, so it will fit most ATV applications.  Actual measurements are 5.975″ (L) x 2.335″ (W) x .575″ (H).

Aluminum Hawse – Wide Spool – The wide version’s mount holes are 6″ apart on center.  These hawses are designed to work with wide spool winches and mount plates.  They will not mount onto a standard size mount plate. Actual measurements are 7.66″ (L) x 1.925″ (W) x .785″ (H).

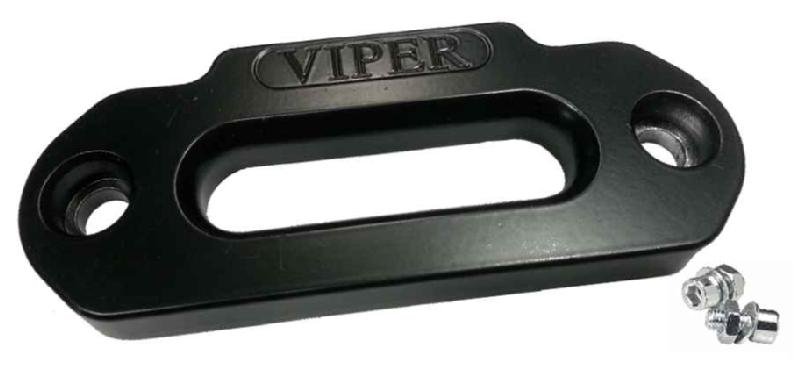

Black Aluminum Hawse – Standard Spool – The standard version’s mount holes are 4 7/8″ on center, so it will fit most ATV / UTV applications.  Actual measurements are 5.975″ (L) x 2.335″ (W) x .575″ (H).

Black Aluminum Hawse – Wide Spool – The wide version’s mount holes are 6″ apart on center.  These hawses are designed to work with wide spool winches and mount plates.  They will not mount onto a standard size mount plate. Actual measurements are 7.66″ (L) x 1.925″ (W) x .785″ (H).

Additional information

Fairlead

Aluminum standard hause lead, Aluminum Wide spool hause lead, Black wide spool hause fairlead, Roller Fairlead
