Description
New improved two way bearing design. The main shaft bearing is now smaller with a 45mm outside diameter allowing a lower initial take off ratio than our past design. Allows tighter belt deflection, transmission shifting and belt chirp.

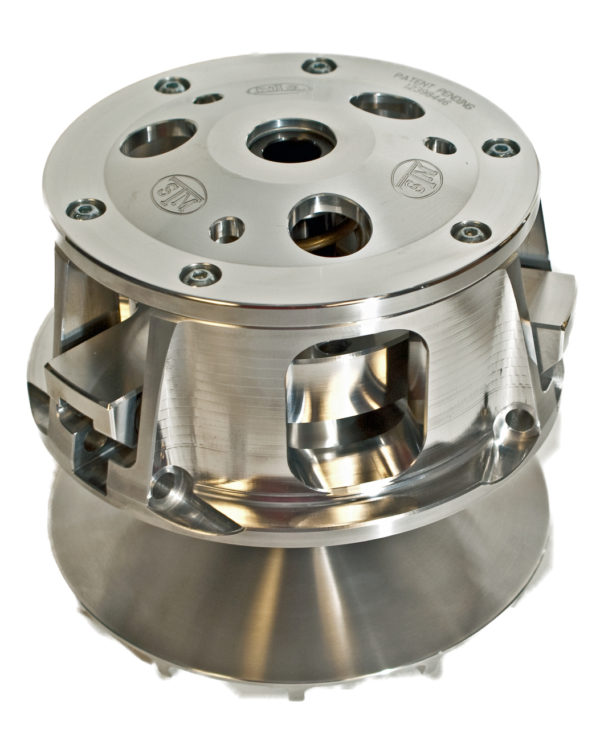

A complete billet design that uses a screw on style spider. Rigid reinforced design for higher horsepower applications. We have designed the Rage III to create more over drive than the stock clutch system. To obtain the proper over drive the Tuner Driven clutch # 299PATVD must be used. These STM clutches will fit under the stock cover with no interference. The Rage III is capable of using most cam arms that are available on the market. We have incorporated a pin size option for every clutch we make by providing a pin conversion design in the moveable sheave. Pin conversions are available in 1/4″and 5/16″ diameter. We incorporate a fixed pin design that pivots the cam arm between two bushings and attaches the cam arm to the pin providing more durability to the cam arm pivot points.
