Description

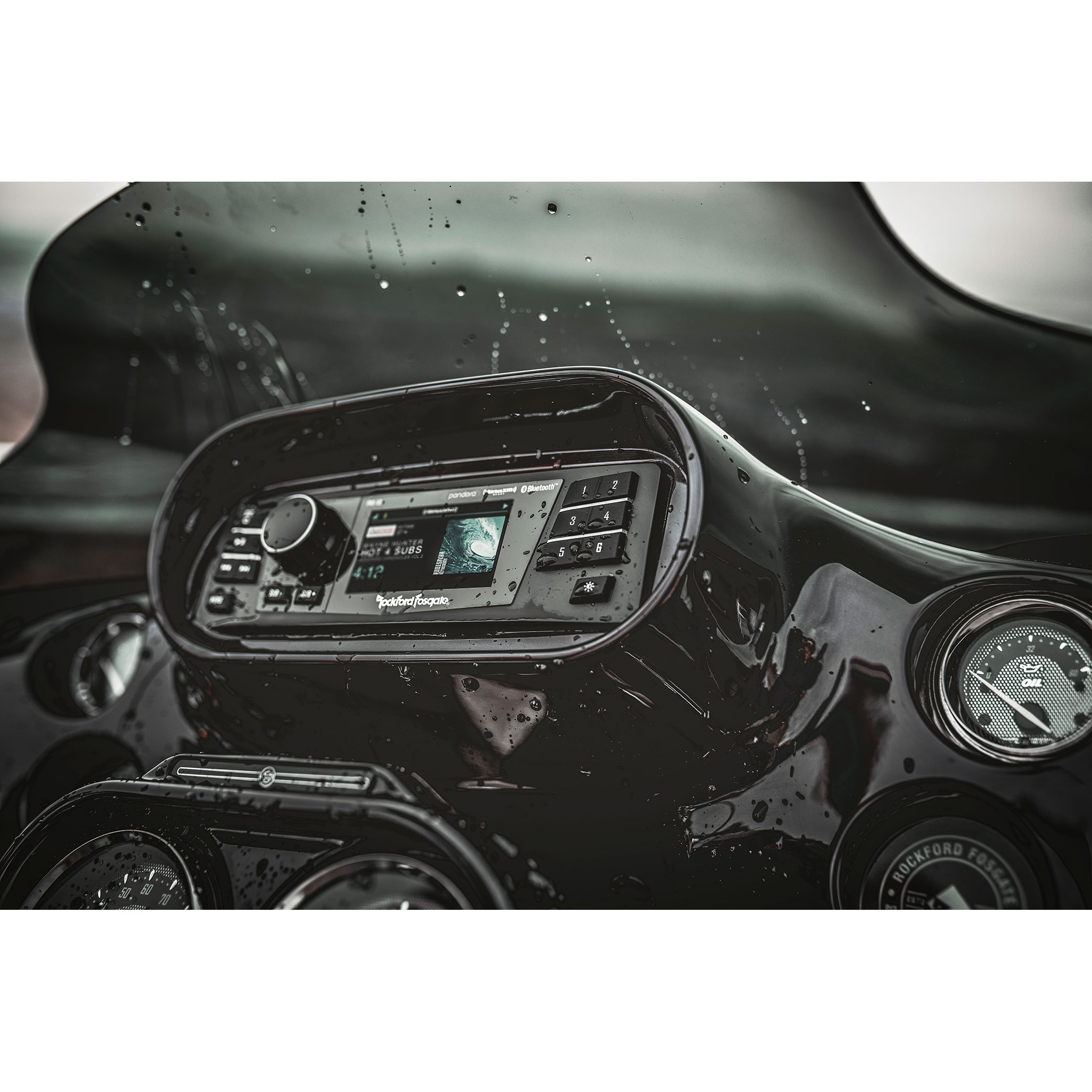

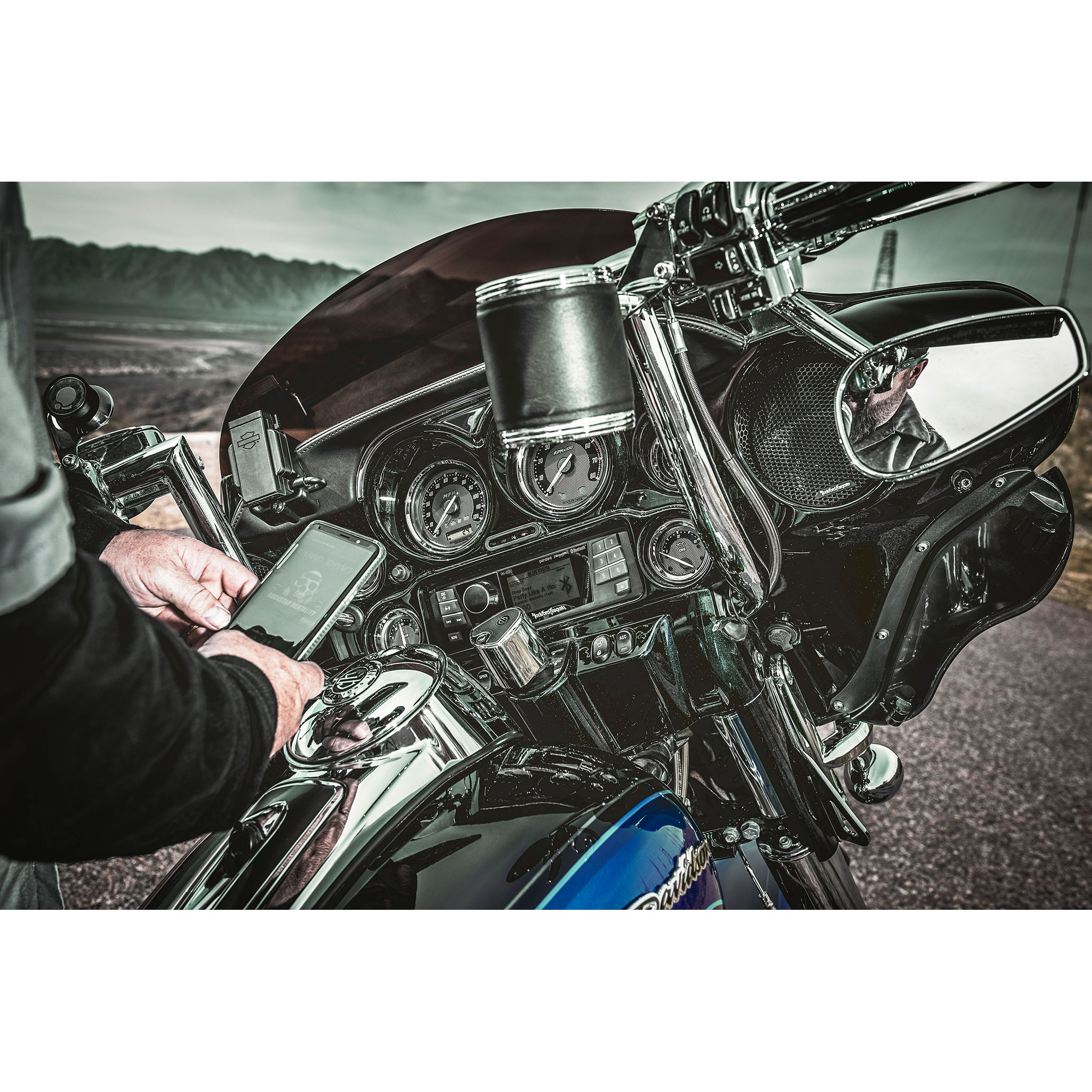

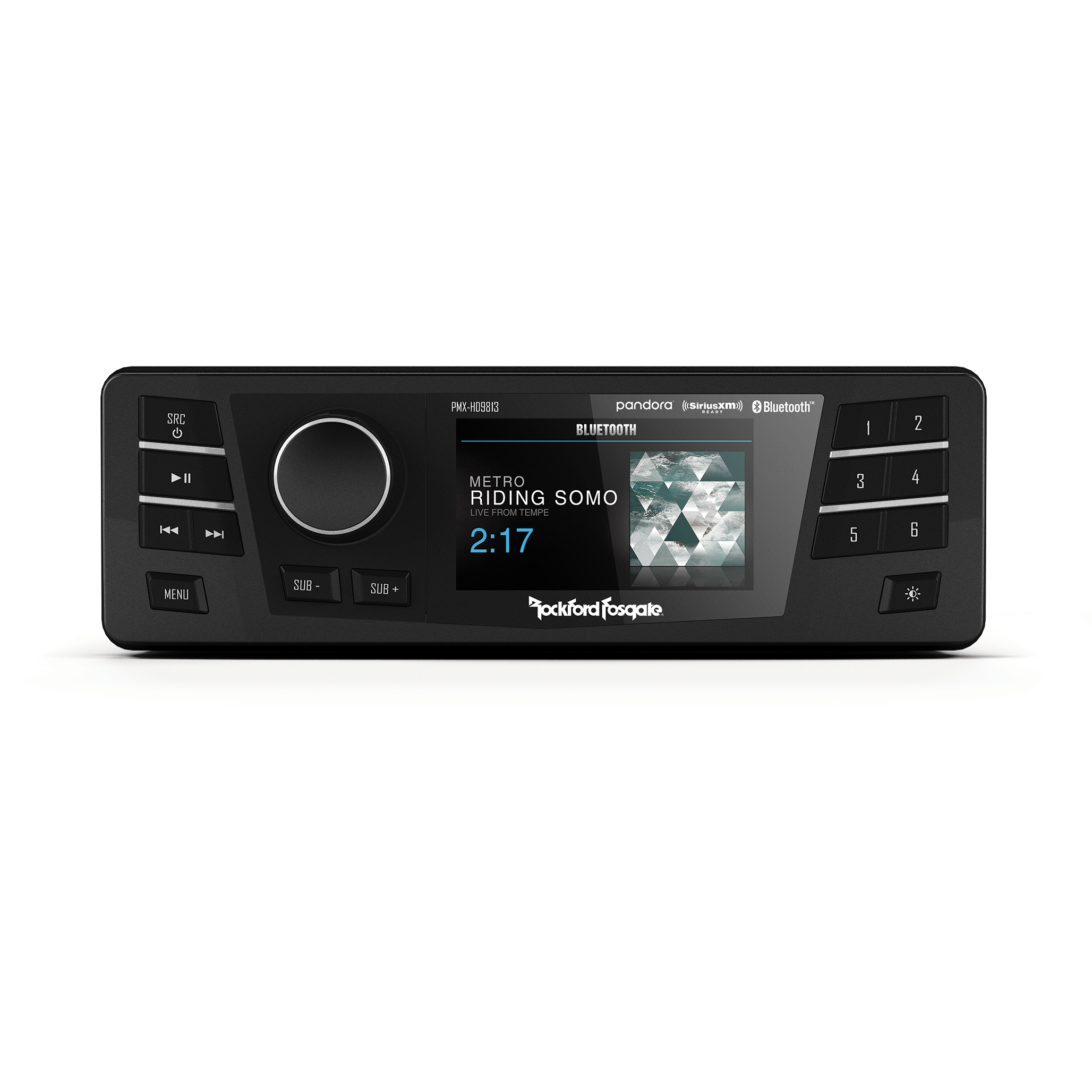

Direct replacement digital media receiver for select 1998 – 2013 Harley-Davidson® motorcycles. Features 3-inch full color, ultra-bright display with day/night modes and oversized buttons for easy control. Engineered for the ultimate in performance and sound quality featuring 4-Volt pre-amp outputs that don’t clip! Plug and play installation with OEM electrical system requires no additional wiring or cutting of existing factory harnesses or components. Retains factory thumb controls. Refer to our COMPATIBILITY chart to verify fitment before purchasing.
PMX-HD9813 Overview
PMX-HD9813 H-D Road Glide Upgrade
PMX-HD9813 Tuning Guide
PMX-HD9813 Software Downloads
Plug and play installation requires factory wiring harness and connectors in order to retain functionality. Systems requiring rear speaker-line outputs will require additional harness (sold separately.) PMX source unit not compatible with factory amplified systems, CB, Intercom, rear volume controls, rear speakers on 1998-2005 Ultra’s, and factory equipped satellite radio systems. Estimated Installation Time: 1 HOUR.
FEATURES AT A GLANCE
- Pandora® Internet Radio Control
- A2DP and AVRCP Bluetooth® Wireless Streaming
- 1998-2013 Harley-Davidson® direct replacement digital media receiver
- Digital AM/FM/WB tuner with presets
- USB Input with 1.5A USB Charging
- SiriusXM® Ready (requires SiriusXM® SXV300 tuner)
- 3″ Full Color TFT Display with Day/Night Mode
- Selectable HP/LP/AP Crossover with Selectable 12/24 dB/Octave Slope
- Compatible with PMX-BTUR Remote control

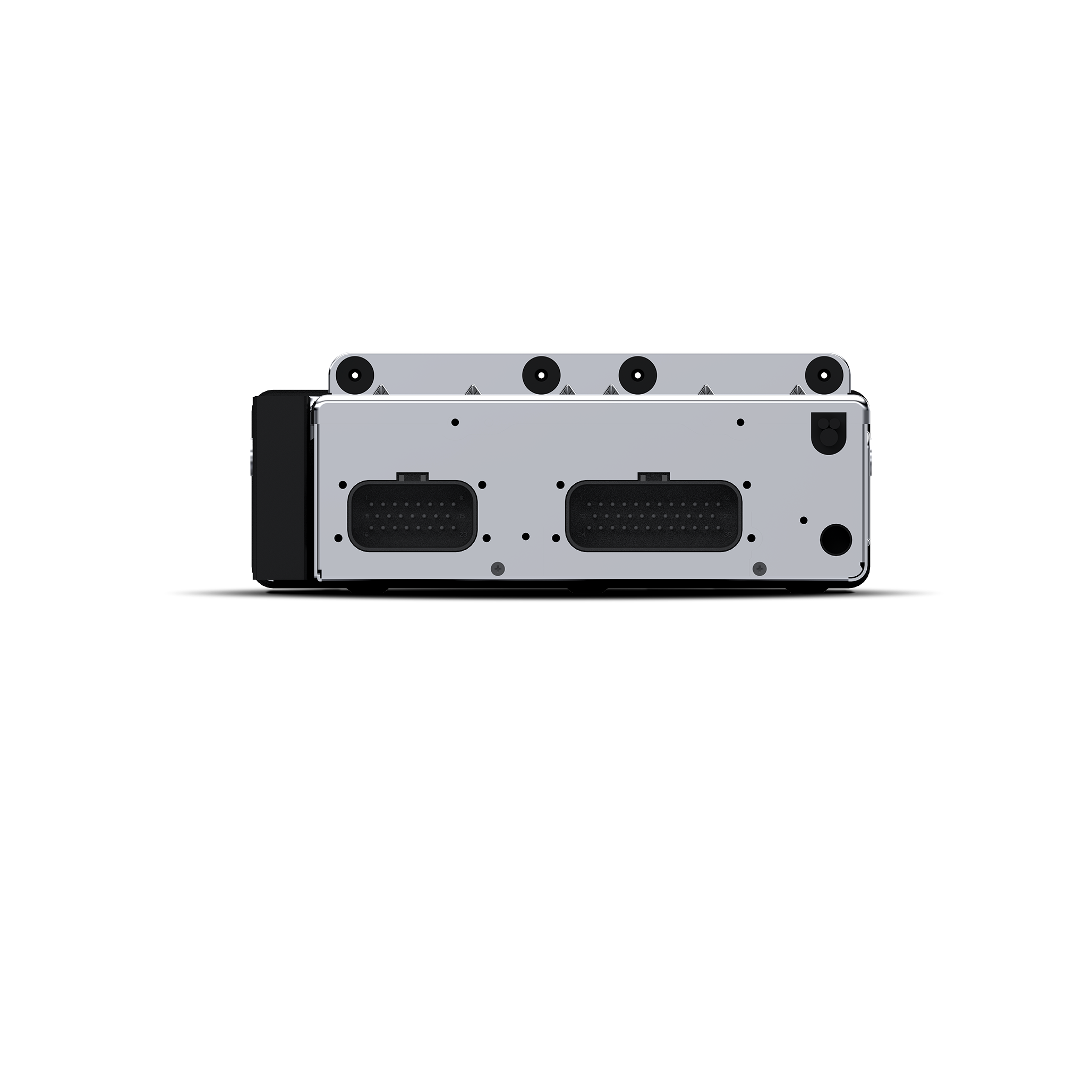

- Plug and Play Installation with OEM electrical connectors
- AUX Input
- Software updatable via USB
- Retains factory thumb control functionality with no additional parts
- Voltage gauge with Low voltage Warning
- 7-Band Graphic EQ + PEQ
- Multi-region radio frequencies
- Independent Subwoofer Level Control
- 2-Year Warranty
- *Antenna not included
Marine Grade standards ensure resistance to extreme environments.
Protects from splashing water, no matter the direction.
Vehicles, boats and internal combustion engines – Radio disturbance characteristics – Limits and methods of measurement …
Water projected in powerful jets from any direction shall have no harmful effects.
All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration.
Pandora® (also known as Pandora Internet Radio) is a music streaming and automated music recommendation service.
Wirelessly stream audio to your unit with any compatible Bluetooth® device.
This source unit supports playback from a USB device.
This radio is ready to accept SiriusXM programming.
This device supports the Apple “Made for iPod/iPhone” protocol.
High Level (CEA-2006): > 75 dB
Max Wrms: > 80 dB
High-Level: > 50 dB
25W x 4 @ 4? RMS
50W x 4 @ 2? MAX
=1.0% THD+N
Rear: 4 V Max
Sub: 4 V Max
High-Level: 20Hz – 20 kHz
Sensitivity: 40 dB
Frequency Response: 45 to 2.4 kHz
Sensitivity: 8 dB
Frequency Response: 20 – 15 kHz
A2DP 1.3
WMA
255 Folders max
999 Songs max
Format Win USB as FAT32
Format Mac USB as MS-DOS (FAT)
Resolution: 960 x 240
Brightness: 380 nits
Contrast: 400
Pixels: 320 x 240
View Angle: 120
iPhone XR
iPhone 8 Plus
iPhone 7 Plus
iPhone SE
iPhone 6s
iPhone 6
iPhone 5c
iPhone XS
iPhone X
iPhone 8
iPhone 7
iPhone 6s Plus
iPhone 6 Plus
iPhone 5s
iPhone 5
iPod touch (6th generation)
(HxWxD)
(68.4 mm x 213 mm x 17.1 mm)

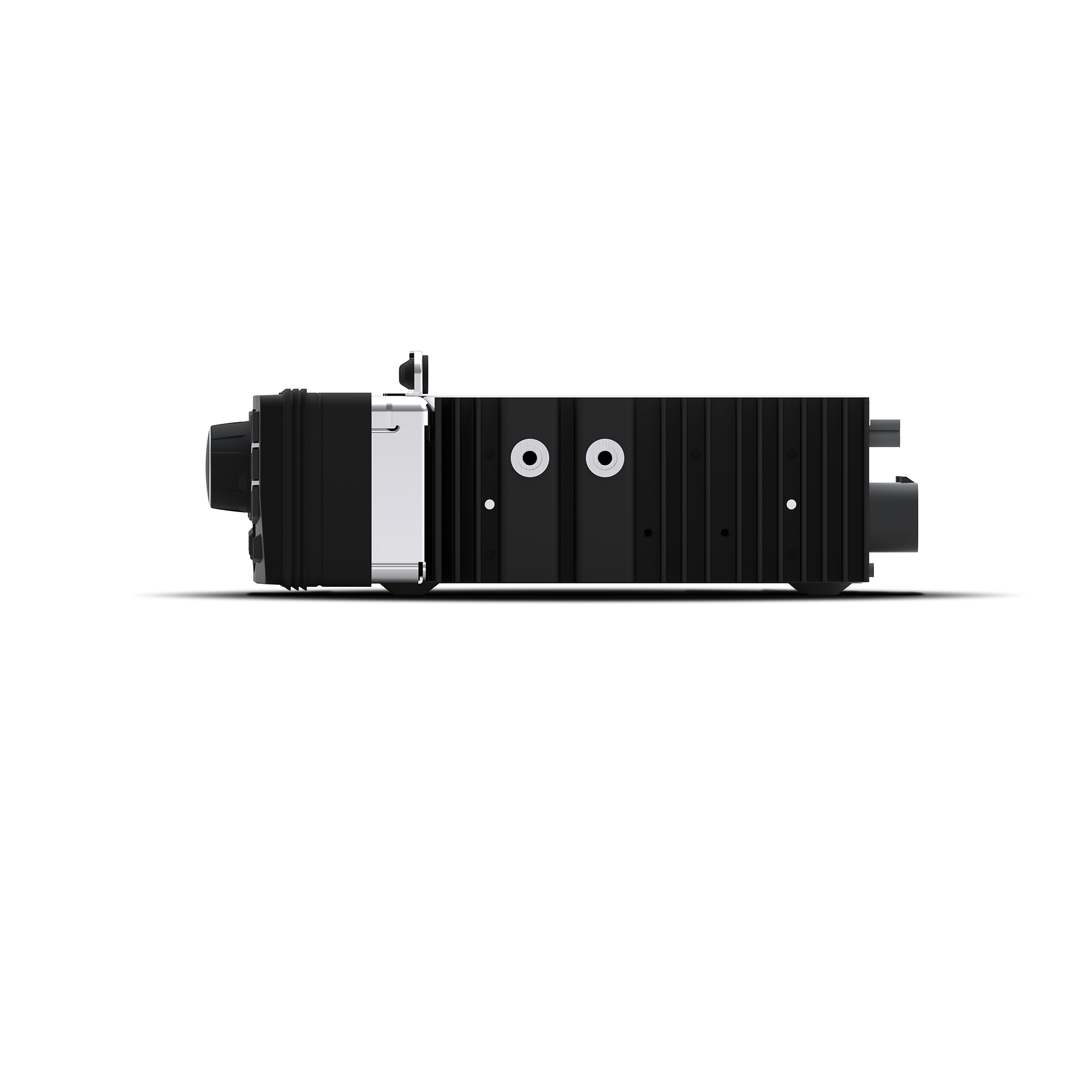

Chassis: 2.5″ x 8.2″ x 7.5″
(63.5 mm x 209.3 mm x 191 mm)
Plug and play installation requires factory wiring harness and connectors in order to retain functionality. Systems requiring rear speaker-line outputs will require additional harness available in the RFK-HD9813 or separately with the 1130-72997-01.
1 Not compatible with factory amplified systems, CB, Intercom, rear volume controls, rear speakers on 1998-2005 Ultra’s, and factory equipped satellite radio systems.
YEAR | MAKE | MODEL |
---|---|---|
2006-2013 | Harley Davidson® | Street Glide®1 |
1998-2013 | Harley Davidson® | Road Glide®1 |
1998-2013 | Harley Davidson® | Electra Glide®1 |
