Description
200 (8) mm (in.) | 82,8 (3.26) mm (in.) | Spl Coaxial | 260 W | 4 Ohm

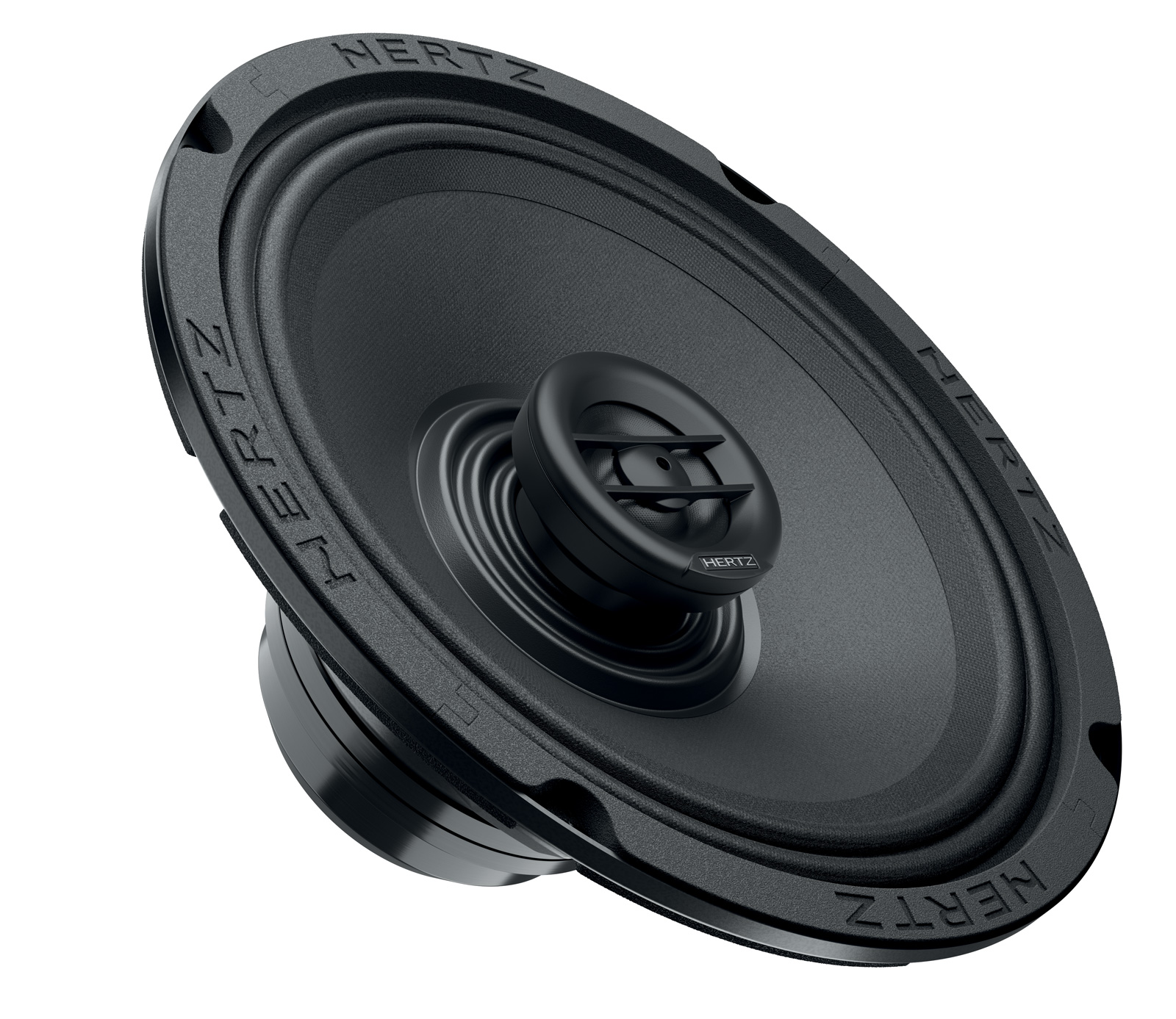

Totally new NEO SPL coaxial SX 200 NEO cone is made with nature-proof high stiffness pressed-paper featuring innovative water/humidity resistant and anti-UV treatments. The double layer copper voice coil, wound on polyamide former ensures unparalleled power handling. New motors units are made of special Neodymium N38 H to obtain a minimum bulk and increased performance. SX 200 NEO features a large Hi-SPL 1.4” PEI dome tweeter with resettable solid-state protection circuit and a protective rubber gasket for high SPL and a safe outdoor use.
| Component | SPL COAXIAL |
| Size mm (in.) | 200 (8) |
| Power Handling – Continuous W | 130 |
| Power Handling – Peak W | 260 |
| Impedance Ohm | 4 |
| Depth mm (in.) | 82,8 (3.26) |
| Tweeter diaphragm mm (in.) | PEI |
| Woofer Voice Coil Ø mm (in.) | 38 (1.5) |
| Tweeter Voice Coil Ø mm (in.) | 28 (1.1) |

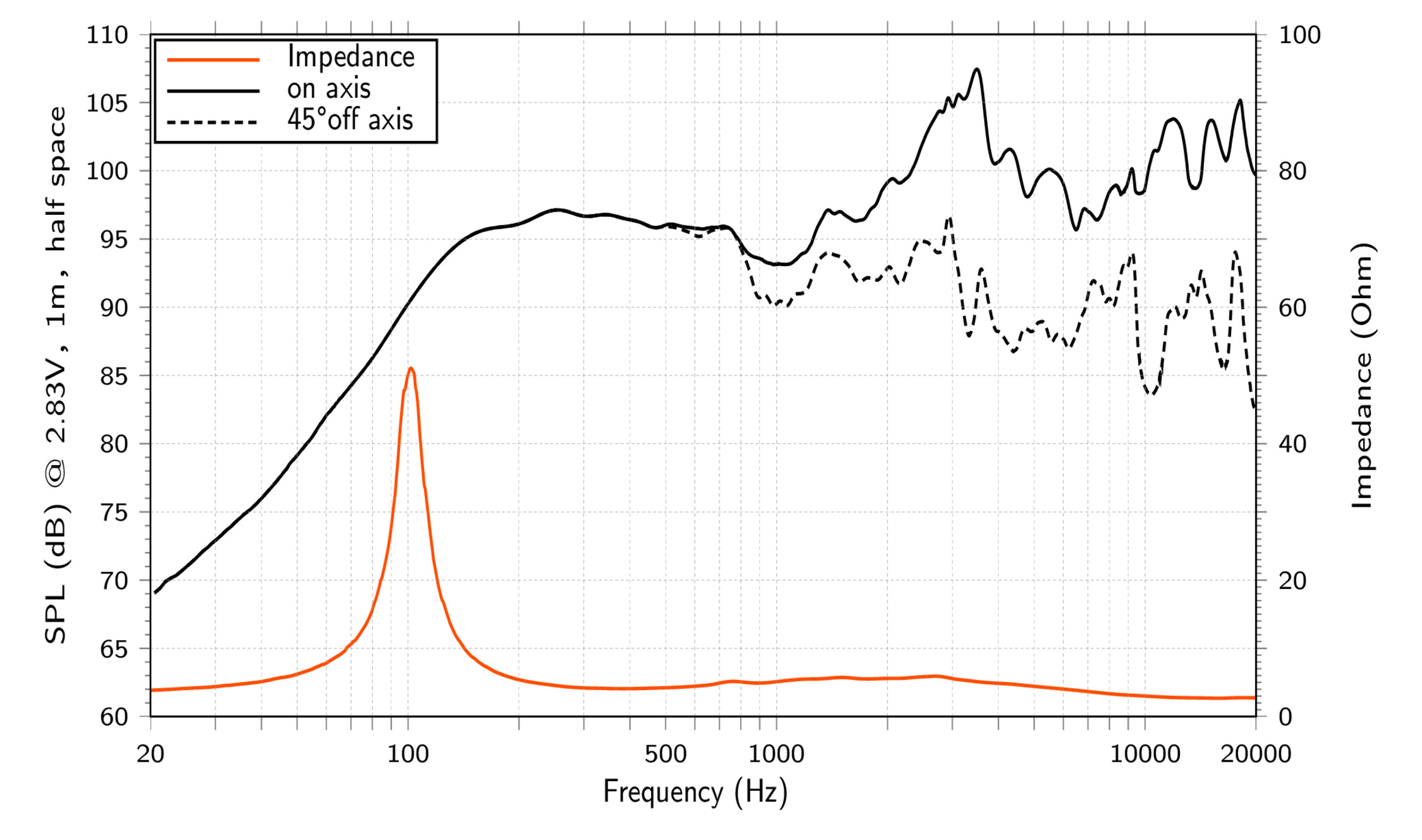

| Frequency Response Hz | 100 ÷ 20k |
| Woofer Magnet size D x d x h mm (in.) | 80 x 50 x 6 (3.15 x 1.97 x 0.24) |
| Tweeter Magnet size D x h mm (in.) | 19 x 3 (0.75 x 0.12) |
| Weight of one speaker kg (lb.) | 1,32 (2.91) |
| Woofer Magnet | Special Neodymium N38 H |
| Tweeter Magnet | Special Neodymium N38 H |
| Cone | Water repellent pressed paper |
| D mm | 168 |
| Xmax mm | 2,7 |
| Re Ohm | 3,3 |
| Fs Hz | 103 |
| Le mH | 0,07 |
| Vas I | 9,70 |
| Mms g | 17 |
| Cms mm/N | 0,14 |
| BL T*m | 8,2 |
| Qts | 0,51 |
| Qes | 0,54 |
| Qms | 8,9 |
| Spl dB | 99,5 |

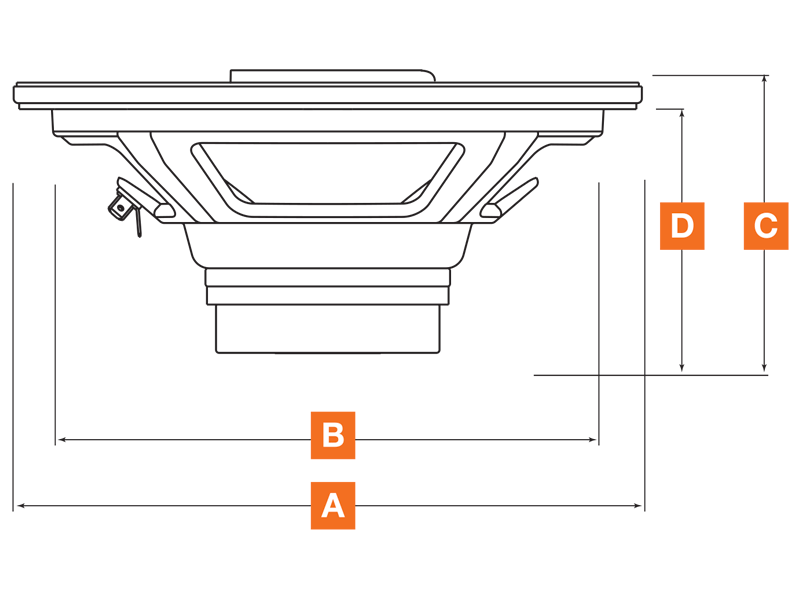

| A | 208 mm | 8.19 in. |
| B | 182,7 mm | 7.19 in. |
| C | 96,2 mm | 3.79 in. |
| D | 82,8 mm | 3.26 in. |
200 mm (8 in.)Full metal sturdy structure composed by a solid cast aluminium ring and a steel mesh black grille featuring an elegant diamond-cut Hertz Logo
Mounting screws totally hidden for a superior integration within the car cabin.

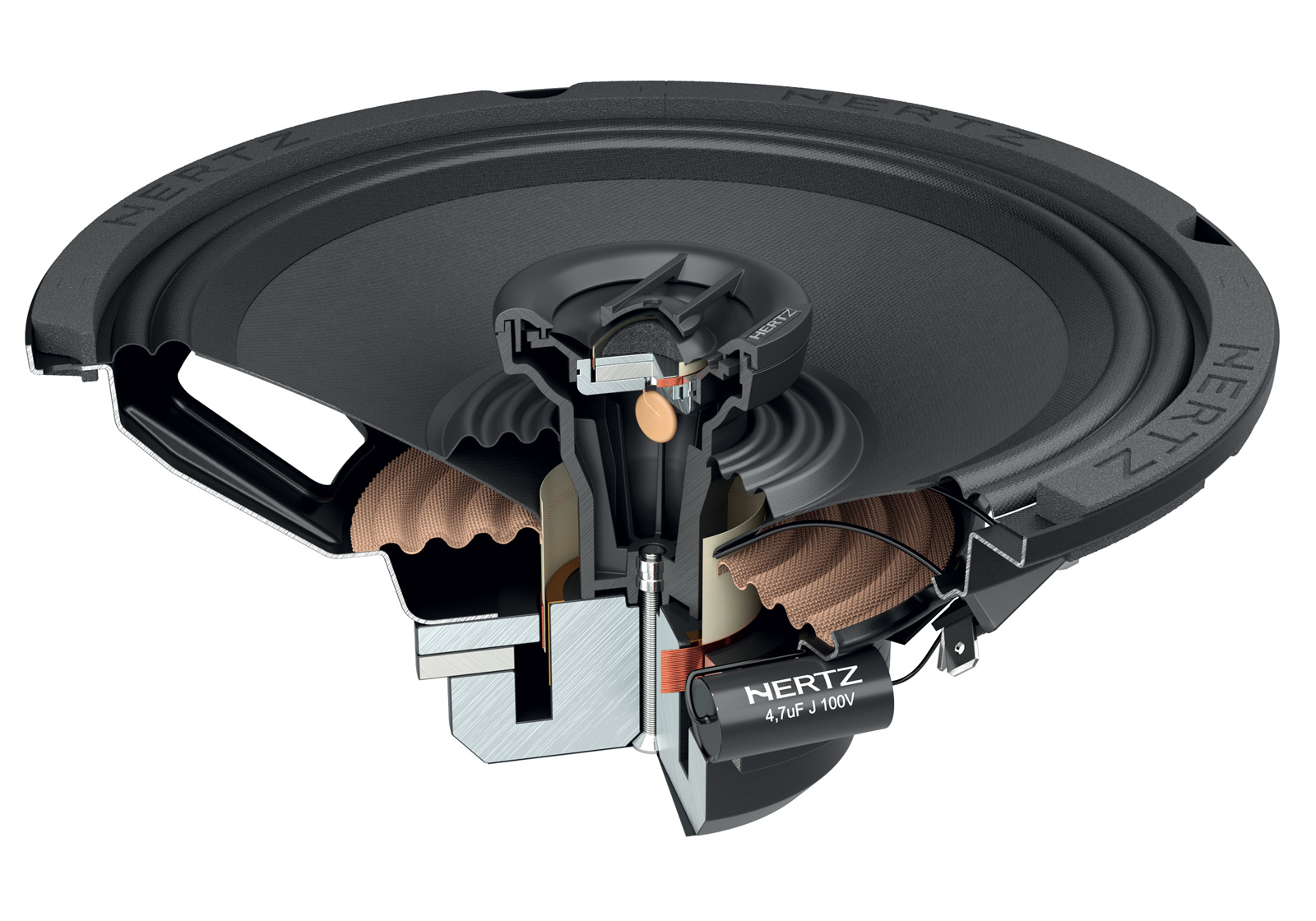

1. Nature-proof high stiffness pressed-paper cone featuring innovative water/ humidity resistant and anti-UV treatments.
2. Durable Extreme SPL performance in a compact size & light-weight thanks to the N38 H Neodymium grade magnet.
3. Unparalleled power handling delivered by the double layer copper voice coil, wound on polyamide former.
4. Hi-SPL 1.4” Neodymium magnet PEI dome tweeter with resettable solid-state tweeter protection circuit.
5. Double faston terminals allow daisy-chaining of multiple units and provide compatibility with most common motorcycle connections.
Compact and lightweight, the new spl neo systems are extremely loud and do not fear nature elements for an unlimited fun in every condition!
